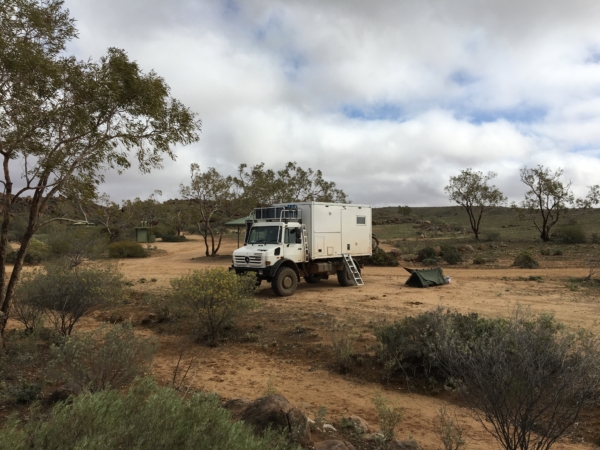

This 2016 U4000 with only 69,000km on the clock since new, paired with the 2016 Bliss Mobil body is a great pair for long term travel or comfortable weekends away.

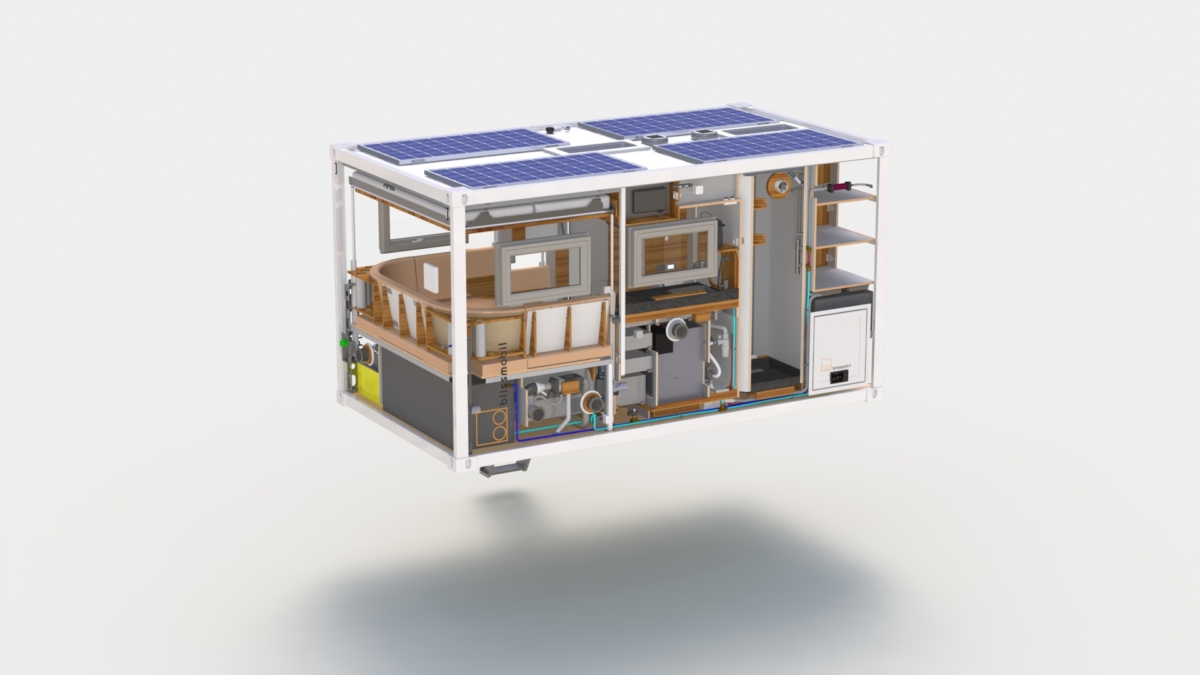

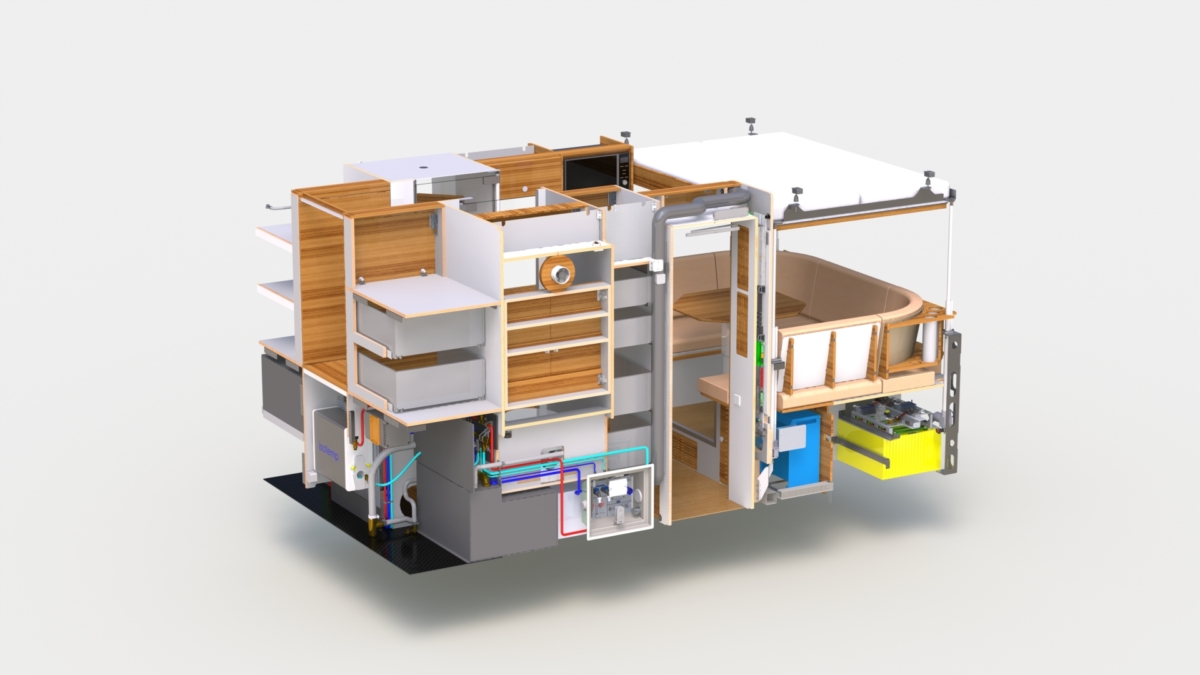

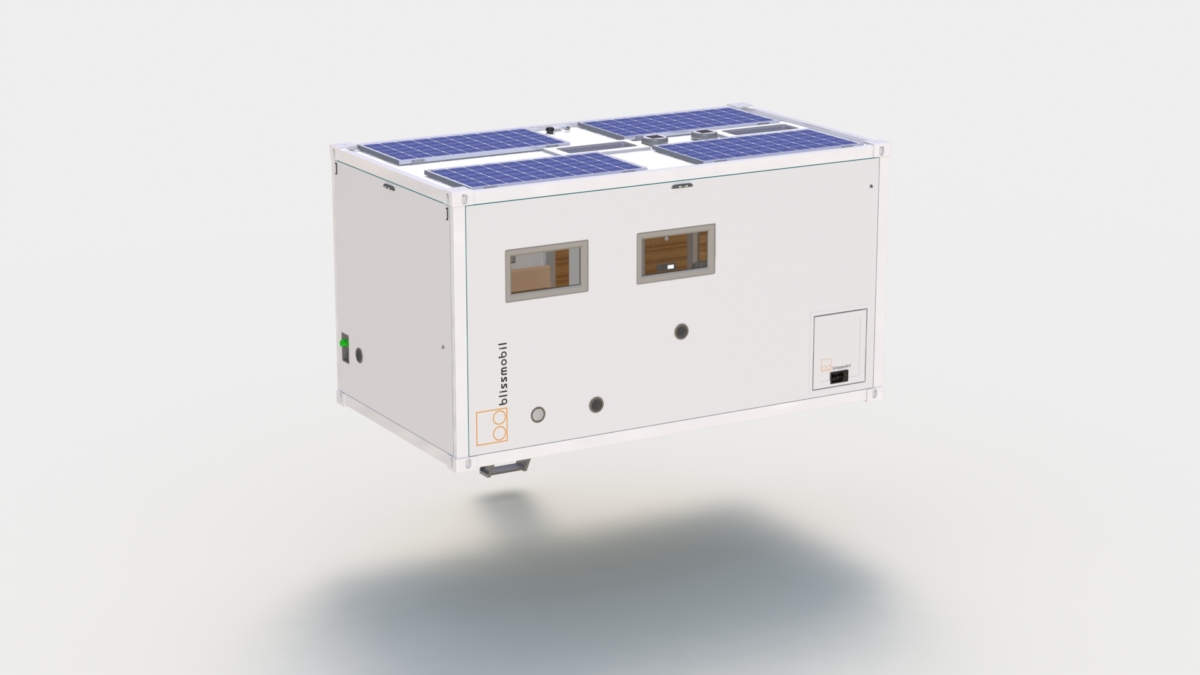

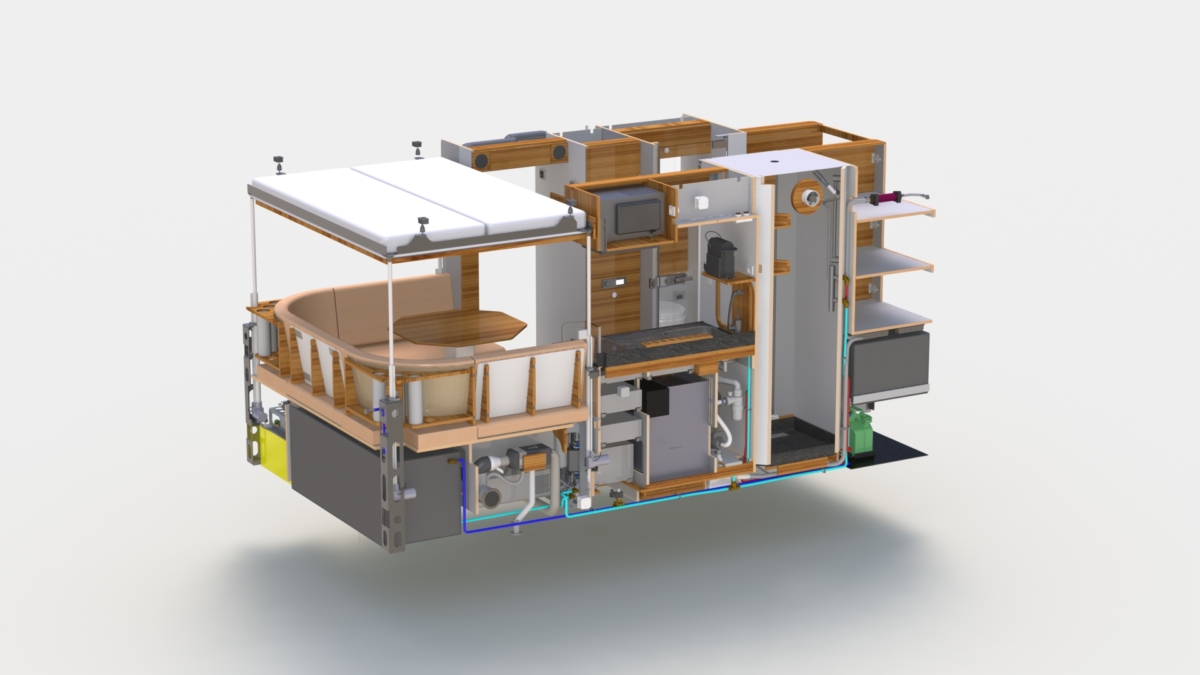

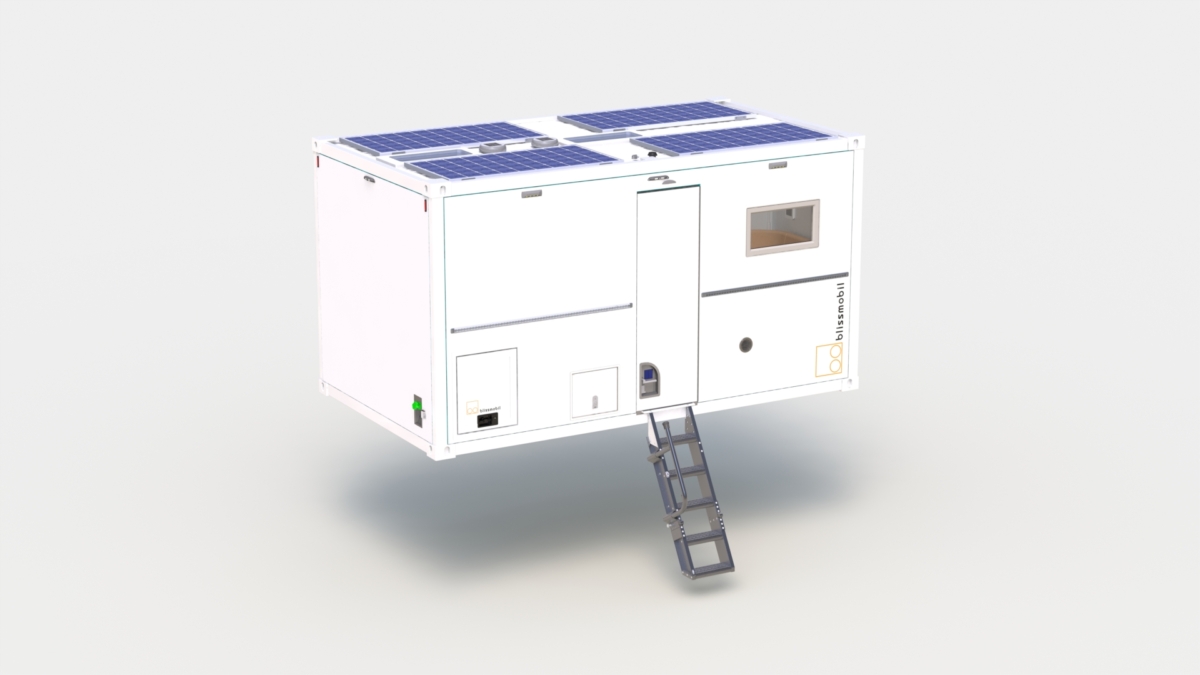

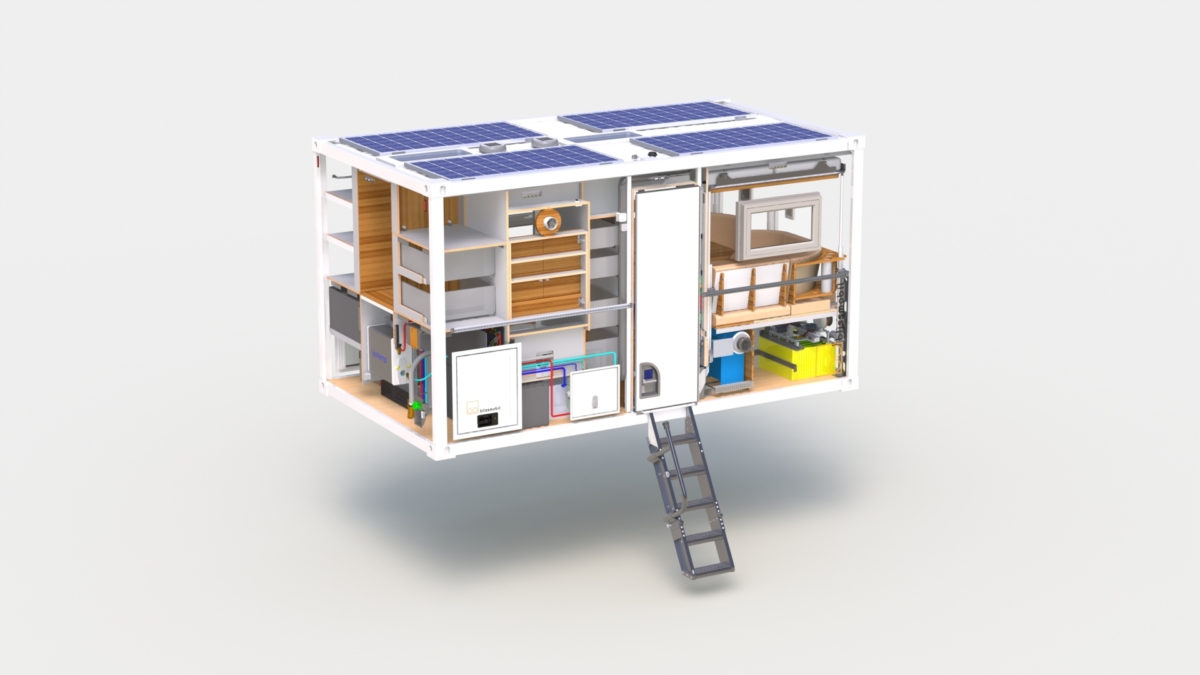

Bliss Mobil 13 foot unit Specifications

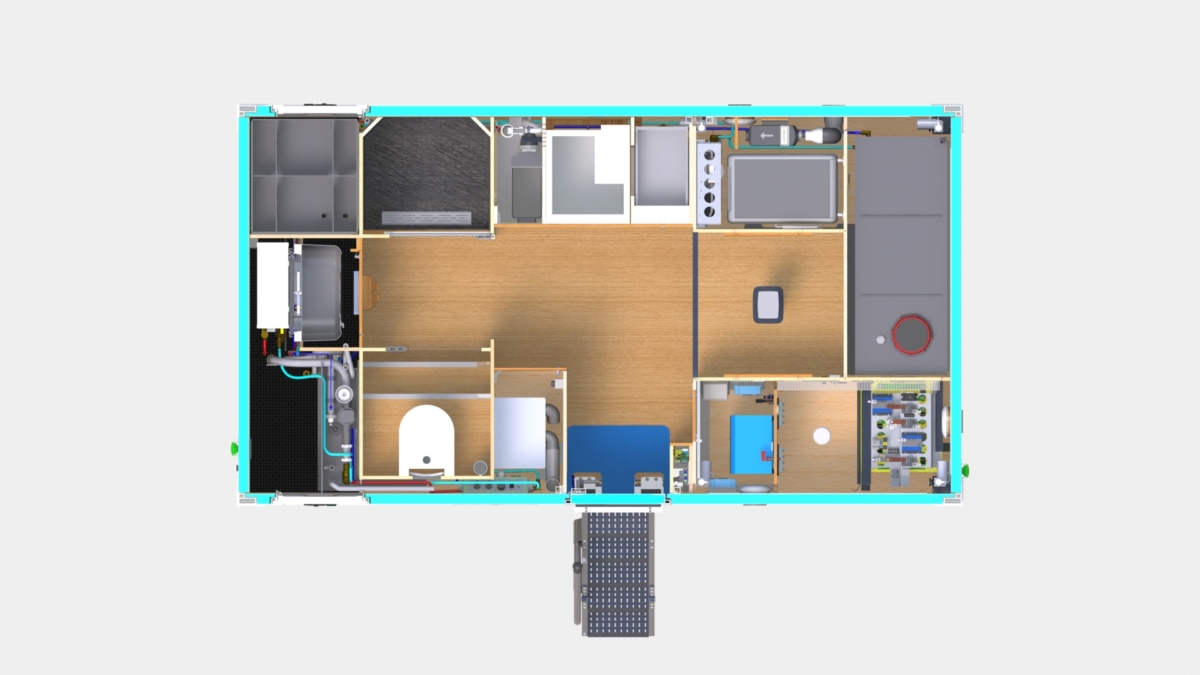

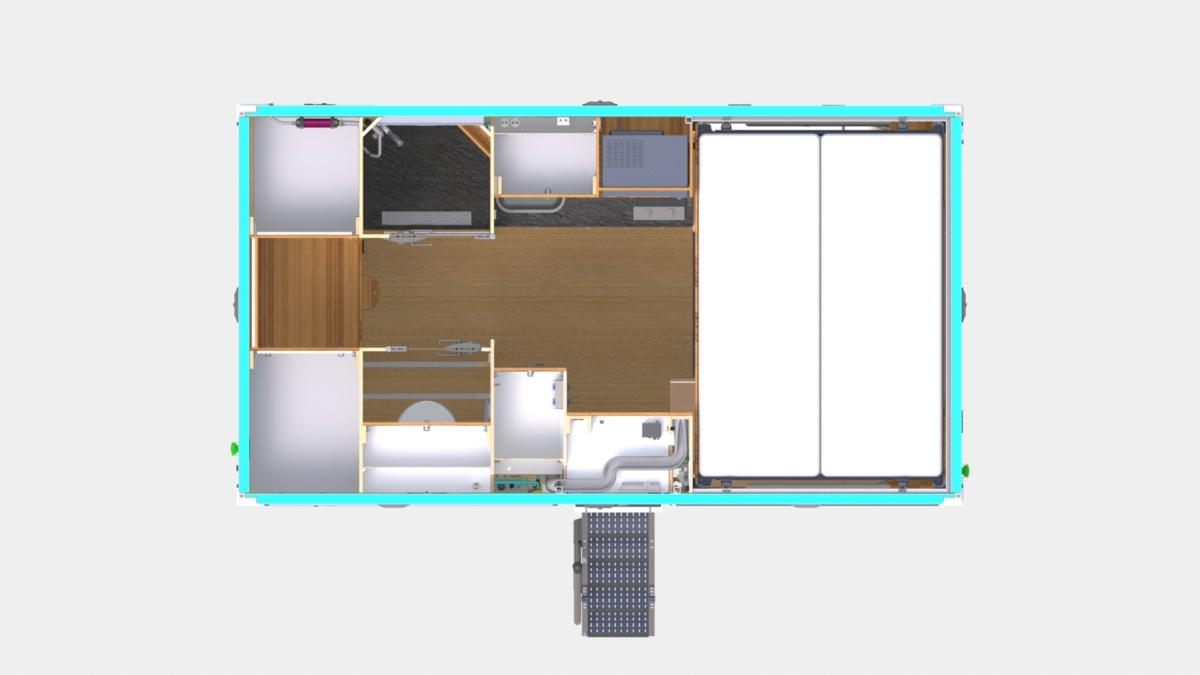

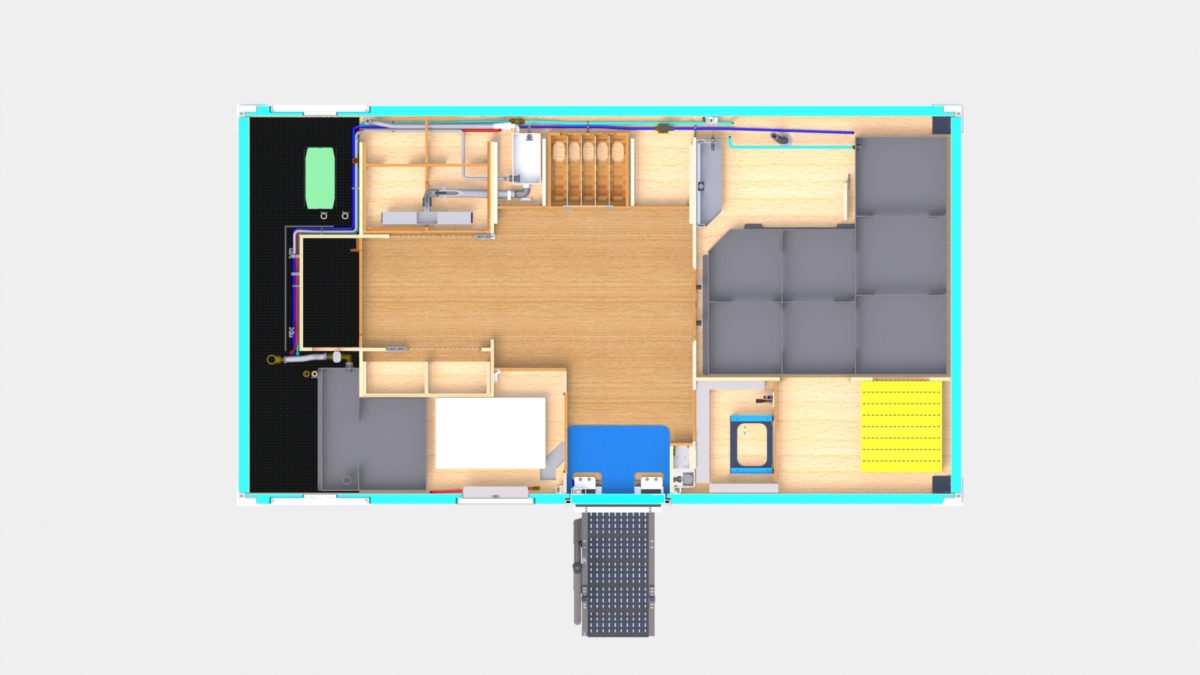

13 foot unit – High Bed Type 1

  • Main bed configuration: High Bed 2000L x 1400W mm

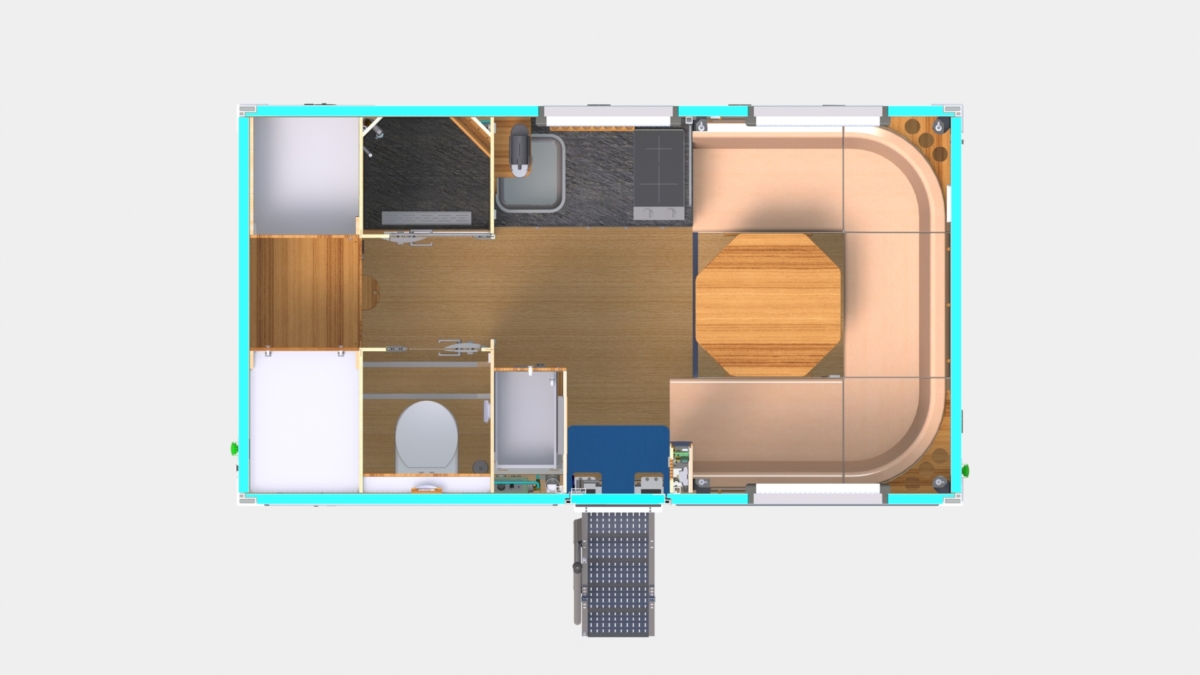

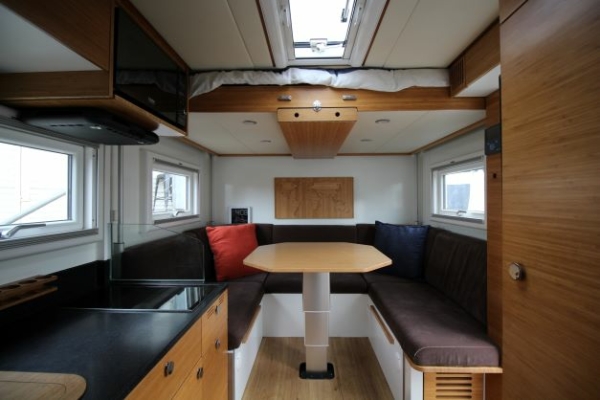

  • Couch configuration: U-shape couch
  • Couch Bed: 2000L x 1450W mm

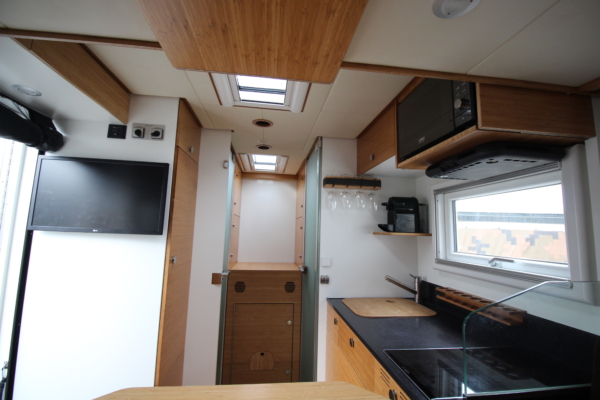

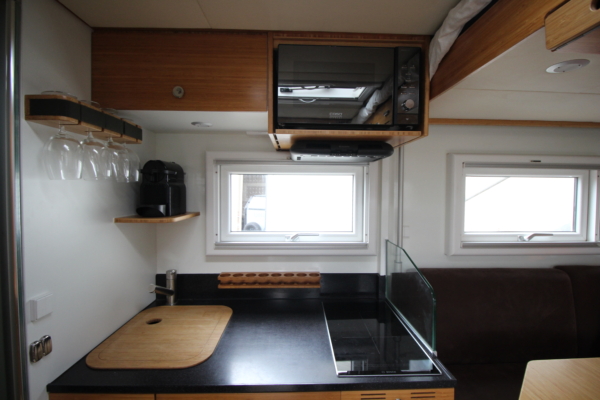

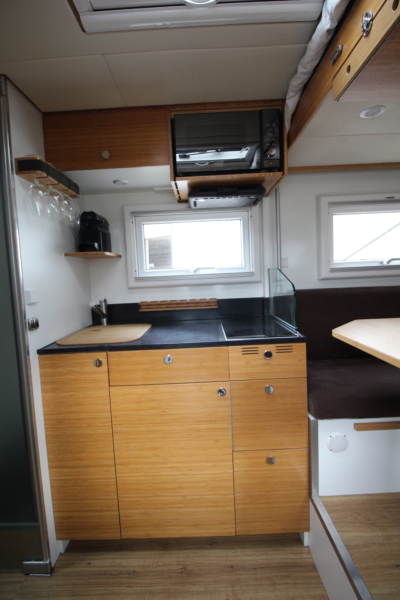

  • Kitchen counter top: fenix worktop with 2 induction hobs
  • Stove 2x induction hobs
  • Microwave, Oven, Grill combination
  • Fridge: 85L 6L freezer compartment
  • Freezer: 60L Engel Fridge/Freezer
  • Extractor hood with carbon filter

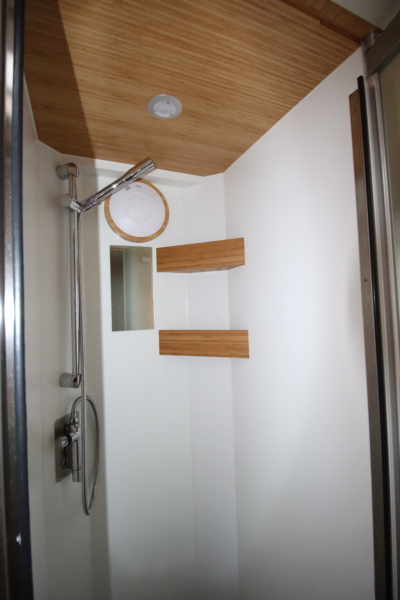

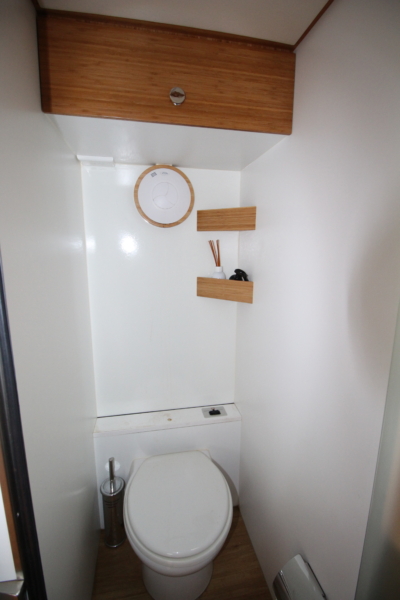

  • Shower and Toilet (ceramic macerator water toilet)
  • Air heater 0.9 – 2.0kW Diesel
  • Under floor heating
  • Air conditioning 2.4kW, 8200 Btu/h, 230 Volt – 1.7kW heating capacity
  • Connectivity: global wifi router with 4G, GPS, Radio with build in Stereo speakers

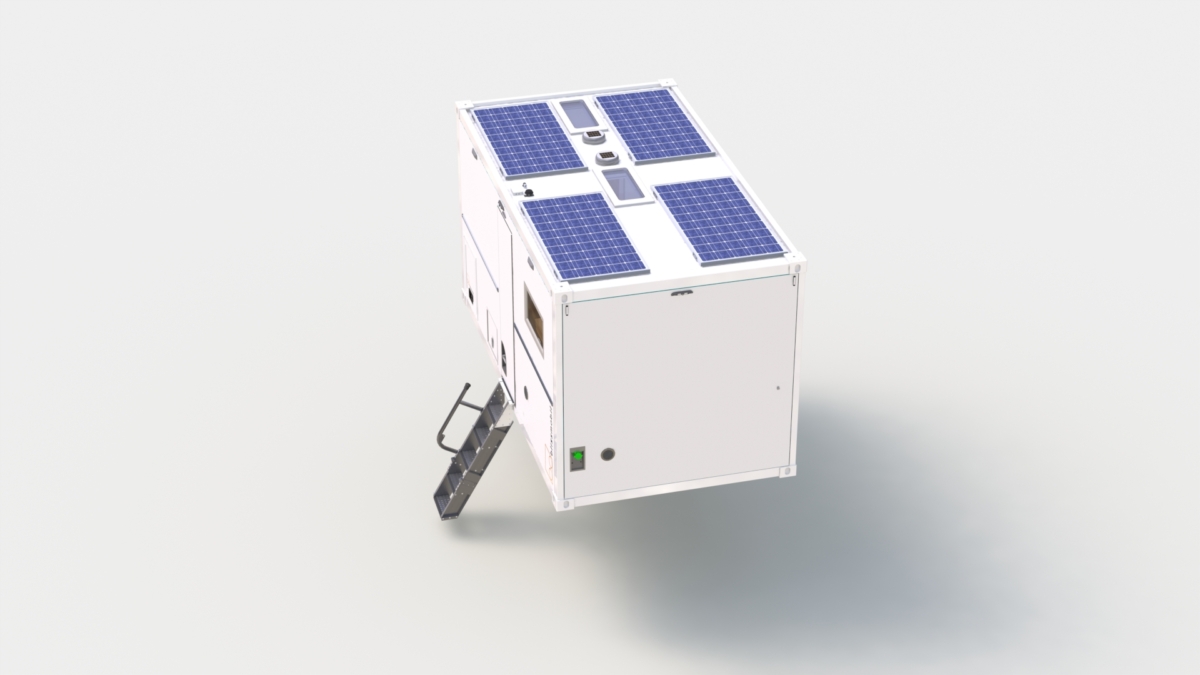

  • Outside dimensions: 4100L x 2270W x 2236H
  • Wall thickness & insulation value: 60mm, 0.396k.m 2/w
  • Roof hatches: large x2 (650x400mm)
  • Windows: medium 3x (820x500mm)
  • Maximal solar power: 0.96kW – 4x solar panels small
  • Batteries: Lithium-Ion batteries with BMS – 400A, 10kwh, 24 volt
  • Inside power connections 5×230 volt, 8x USB
  • Outside power connections: 24 volt truck connection
  • Connection box power connection 230 volt shore power charging, 230 volt supply, 2x USB, 1x 12 volt
  • Fresh water tank capacity approx. 450L
  • Grey water tank capacity approx. 140L
  • Black water tank capacity approx. 120L
  • Boiler capacity 20L, 1.2kw
  • Outside water in/out connection: hot and cold water connection
  • Fresh water pump

U4000 Unimog Specs

  • Double sealed wheel hub for muddy conditions
  • Central Tyre Inflation
  • Vertical exhaust pipe
  • GVM: 9.5 tonne
  • Fuel Tanks: Left 160L and Right 430L
  • Air ride seat in both driver and passenger seat
  • Diff locks in front and rear
  • Fixed parts for mounted bodies/superstructures
  • CD Radio
  • Cab roof higher (120mm)
  • Integrated air-conditioning system
  • Titling brackets for cab
  • Automatic shift (EAS)
  • Gearbox oil cooling
  • Stone guard grill for tail lights and direction indicators
  • Water separator in fuel system
  • Speed limited to 100km/hr
  • Axle ratio i=5.31 (high-speed axle)
  • Air reservoir, moved inside frame.


  • Roof Racks including stairs
  • Built in vacuum cleaner
  • 360 degress IR-camera system – 4 IR cameras with DVR recording
  • Storage box mounted on subframe
  • Outdoor kitchen
  • Upgraded rear suspension
