Demonstrator Stock

2022 U5023 w/ 13FT BLISS BODY

FOR SALE

DEPOSIT TAKEN.



UNIDAN x BLISS MOBIL

Unidan Engineering has been the Australian dealer for Bliss Mobil since 2022.

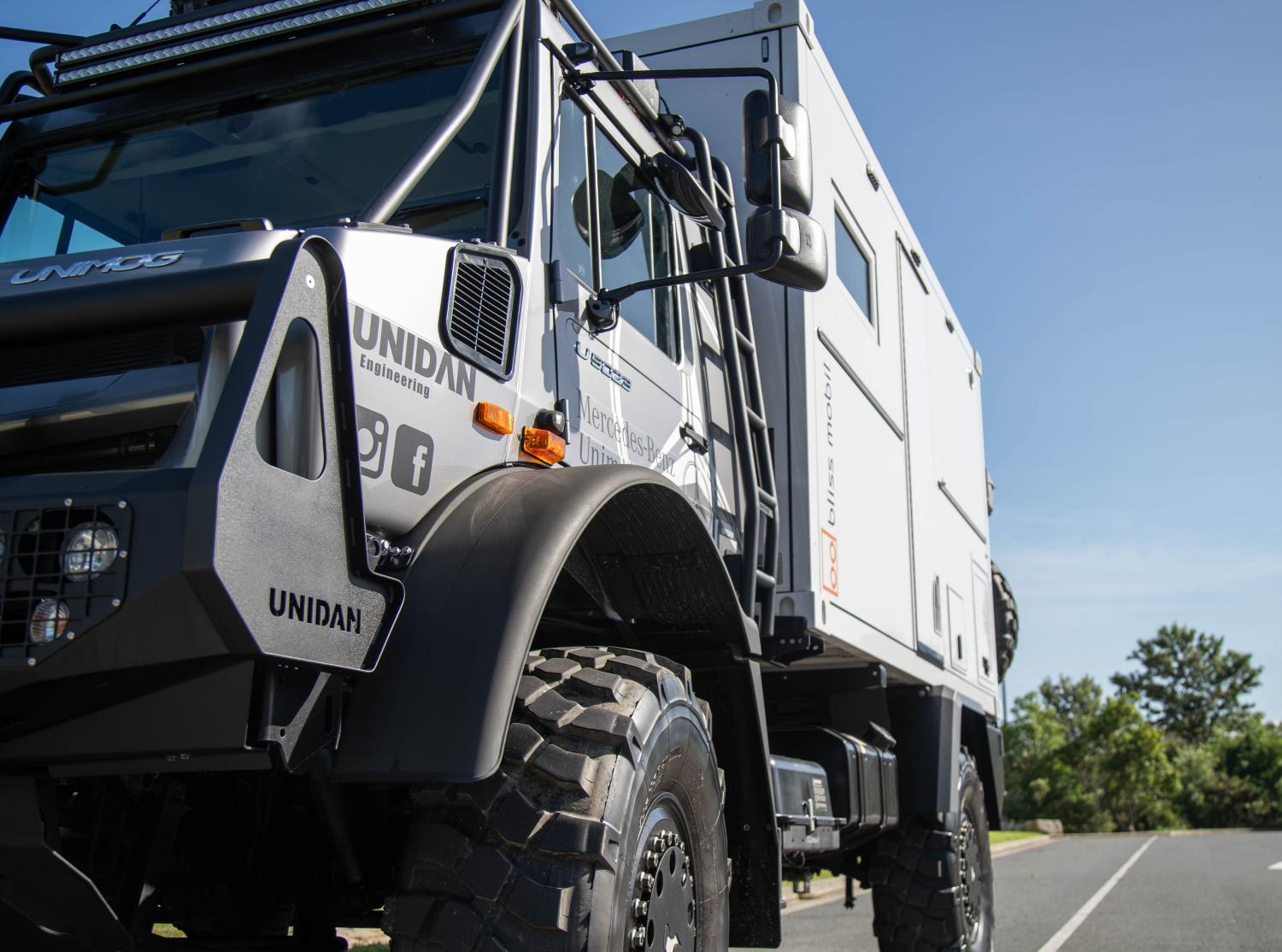

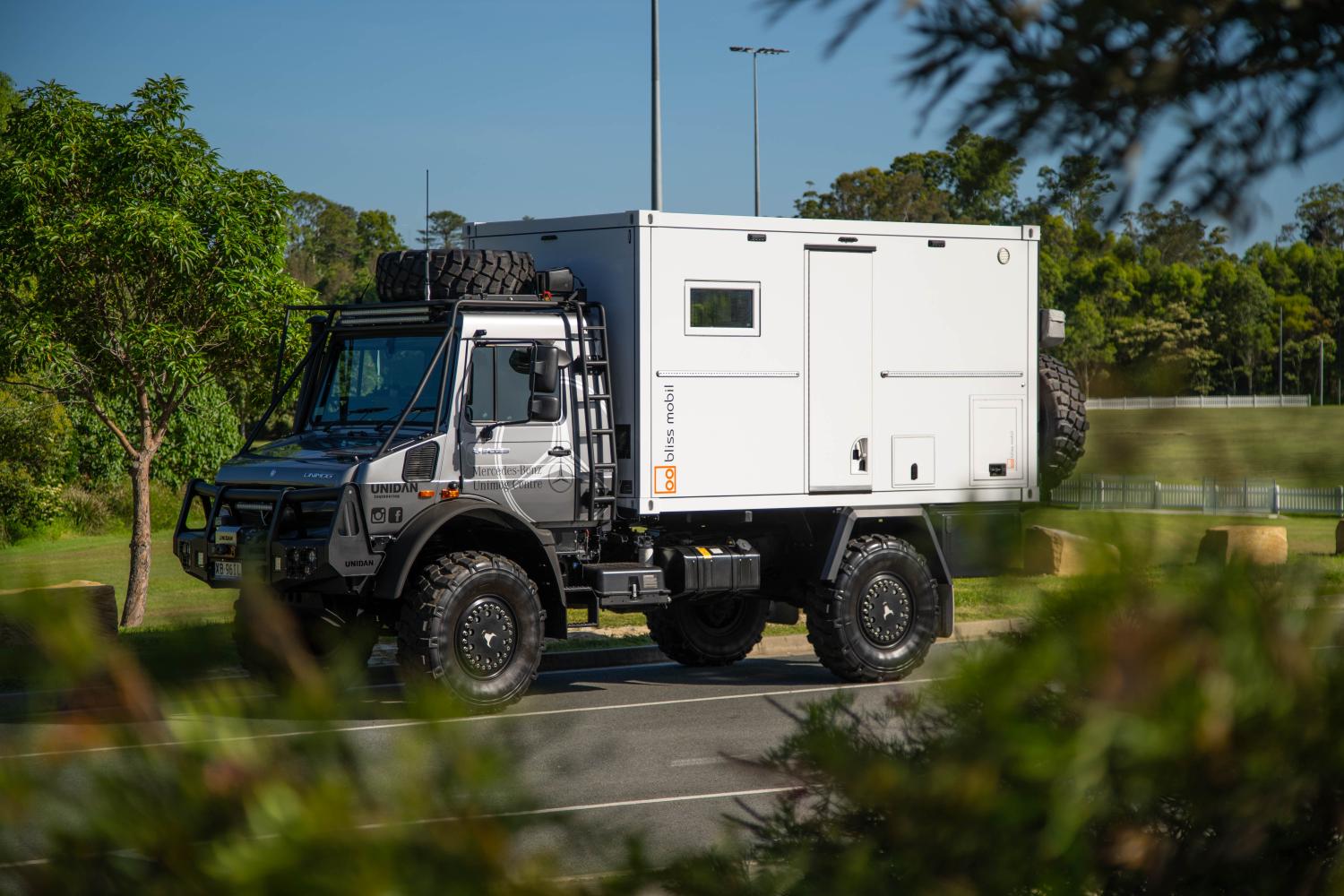

In partner-ship with Bliss we created the ultimate expedition vehicle, the Mercedes-Benz U5023 Unimog with a 13ft Bliss Mobil Body. This truck has lived its life as the demo truck at our Yatala location and used for content!

Check out the full breakdown here!



THE UNIDAN TREATMENT

Kitted from top to bottom in Unidan's catalogue of recommended equipment to ensure all adventures are nothing short of amazing!

BLISS MOBIL QUALITY

Paired with Bliss's profound testament to creating an expedition body that meets the highest of quality standards.


SPECIFICATIONS

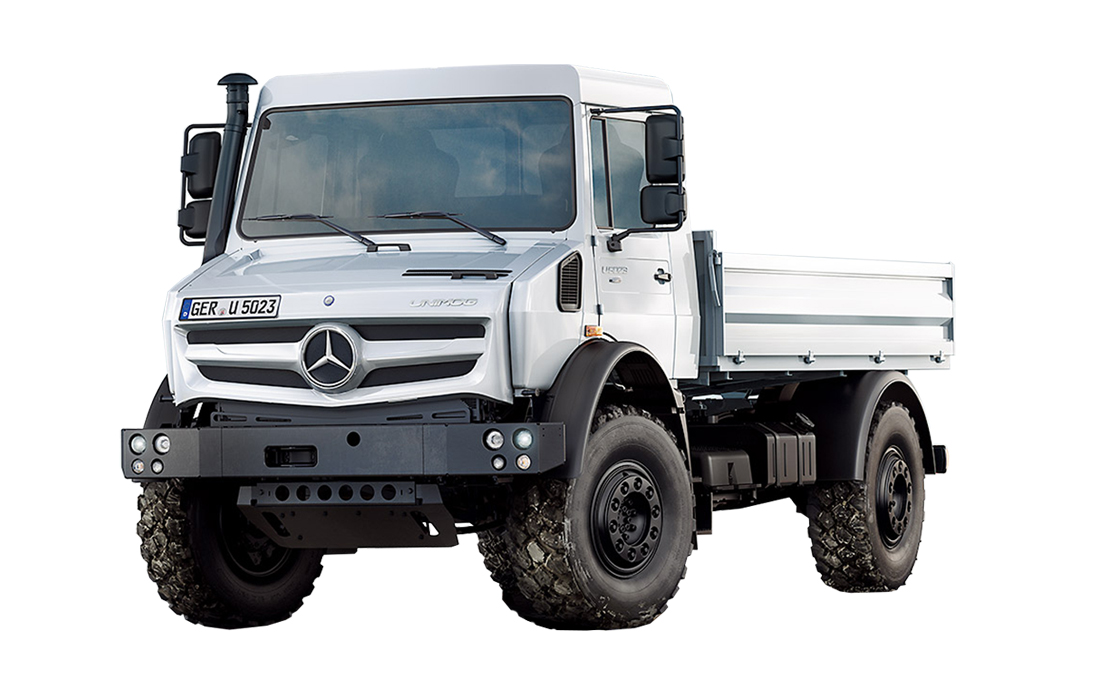

    U5023 FACTORY SPECS

Central Tyre Inflation Axle ratio 1=5.92 (high speed axles)
Trailer brake 2-line
Extend rear overhang to 1,110mm
Centre seat with 3 point seat belt
Air suspended drivers and passenger seats
Power windows
Trailer plug in socket for ABS
Cab tilting mechanism, mechanical hydraulic
Additional gearbox with working gear range
Automatic shift (EAS)
Special parts for fording ability

    TRUCK ACCESSORIES

    in addition to factory options

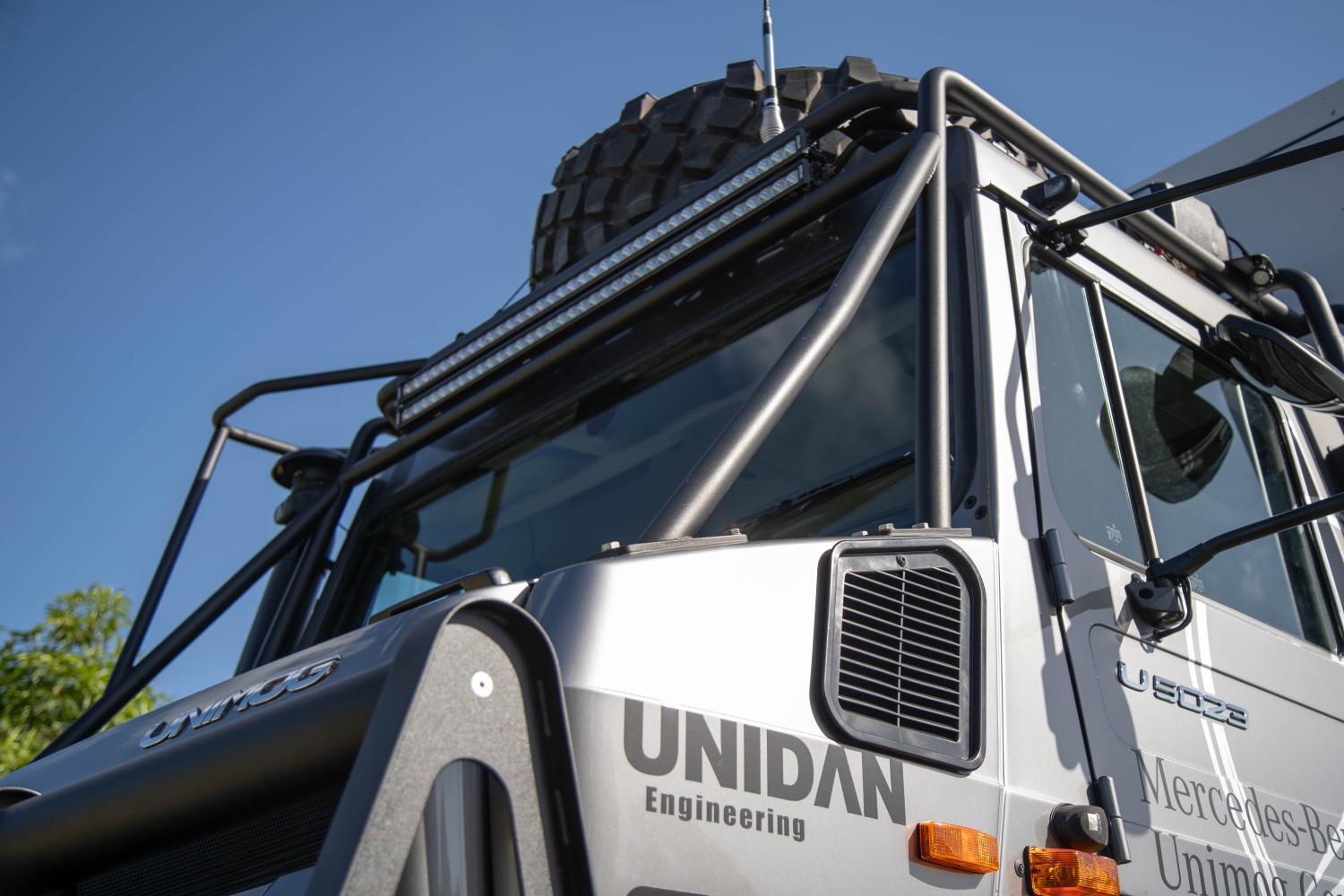

  • Unidan Scrub Bars

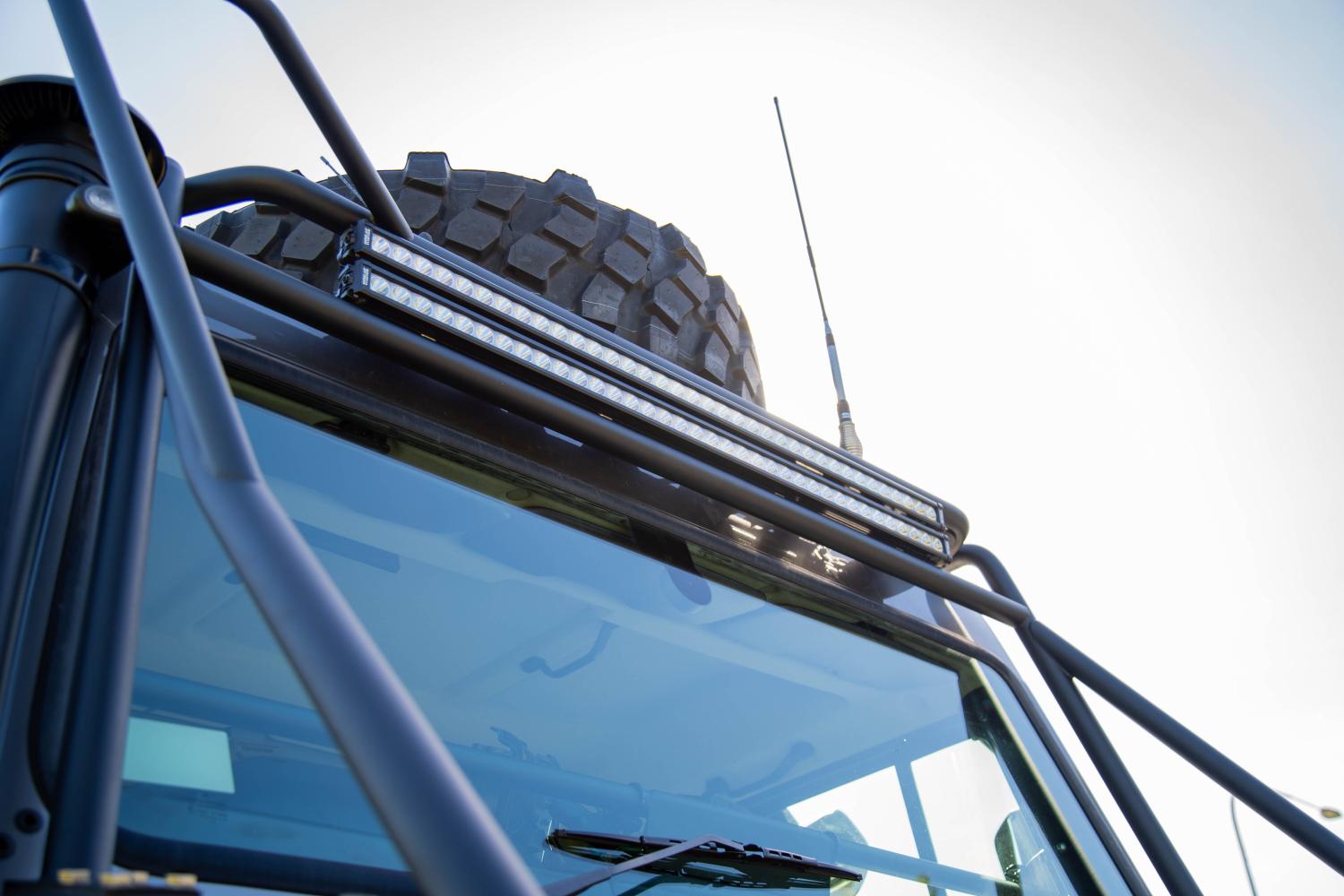

    • 2 x Great White 36LED Light Bar
    • 2 x LED Side light
  • Electric crane

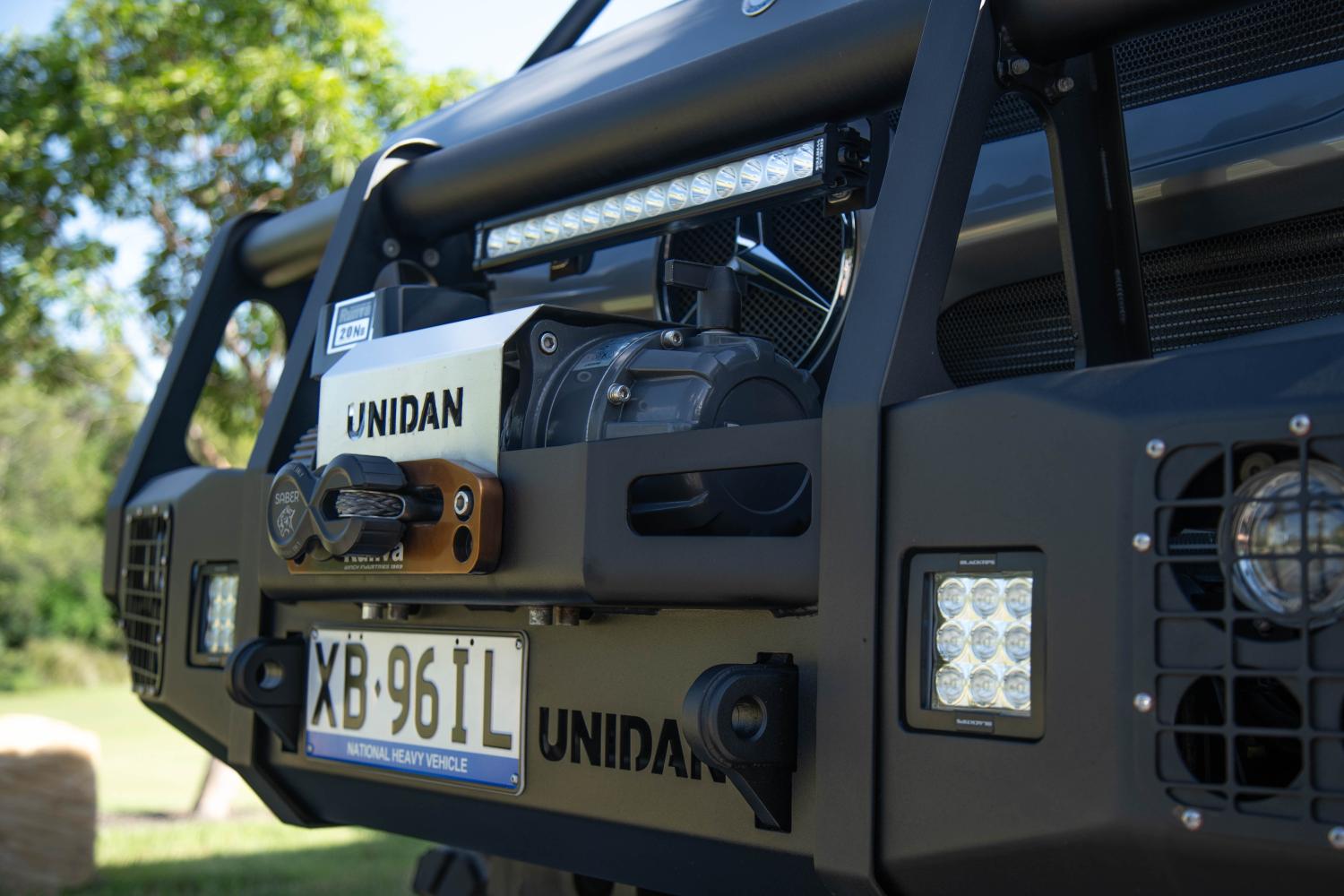

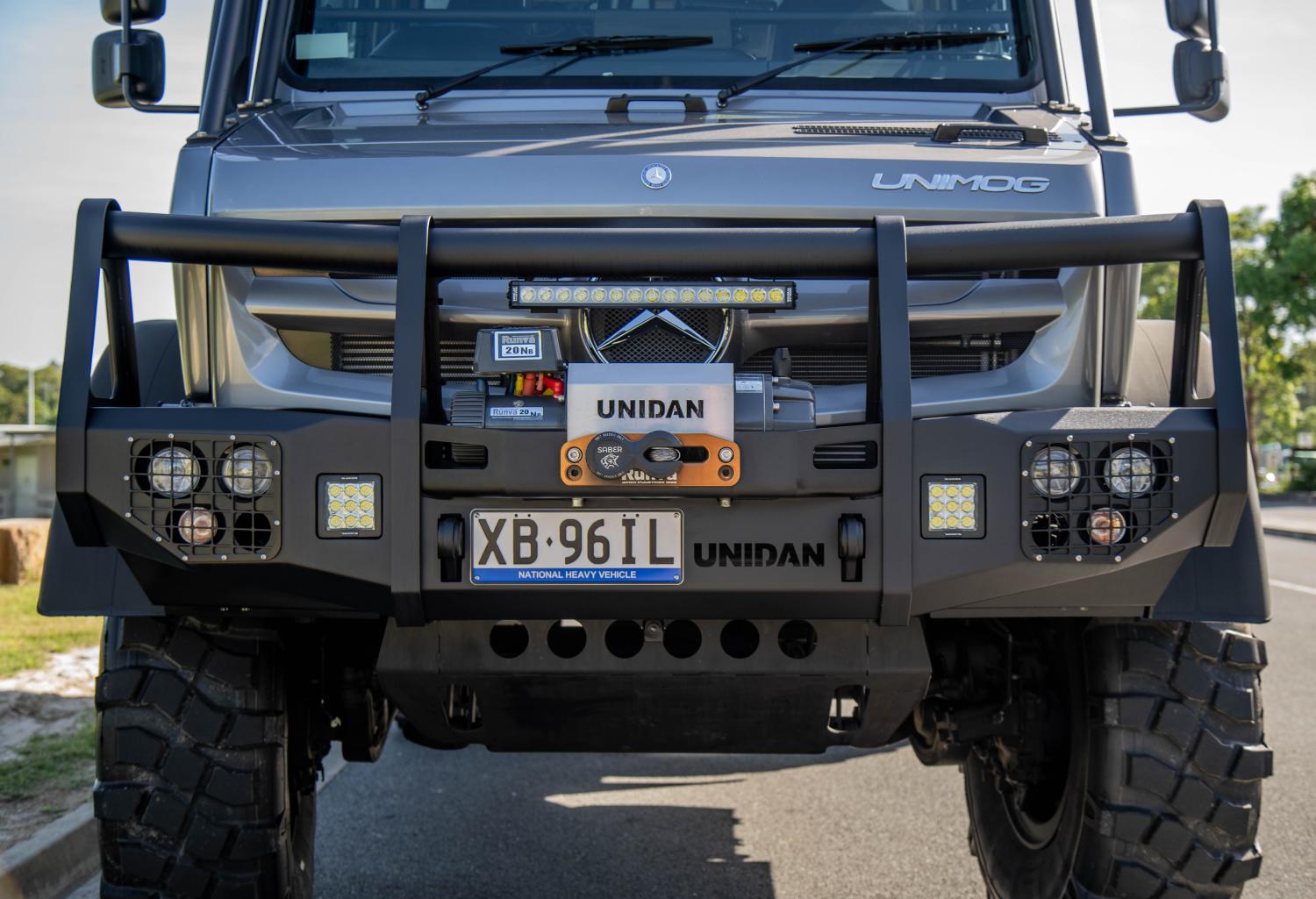

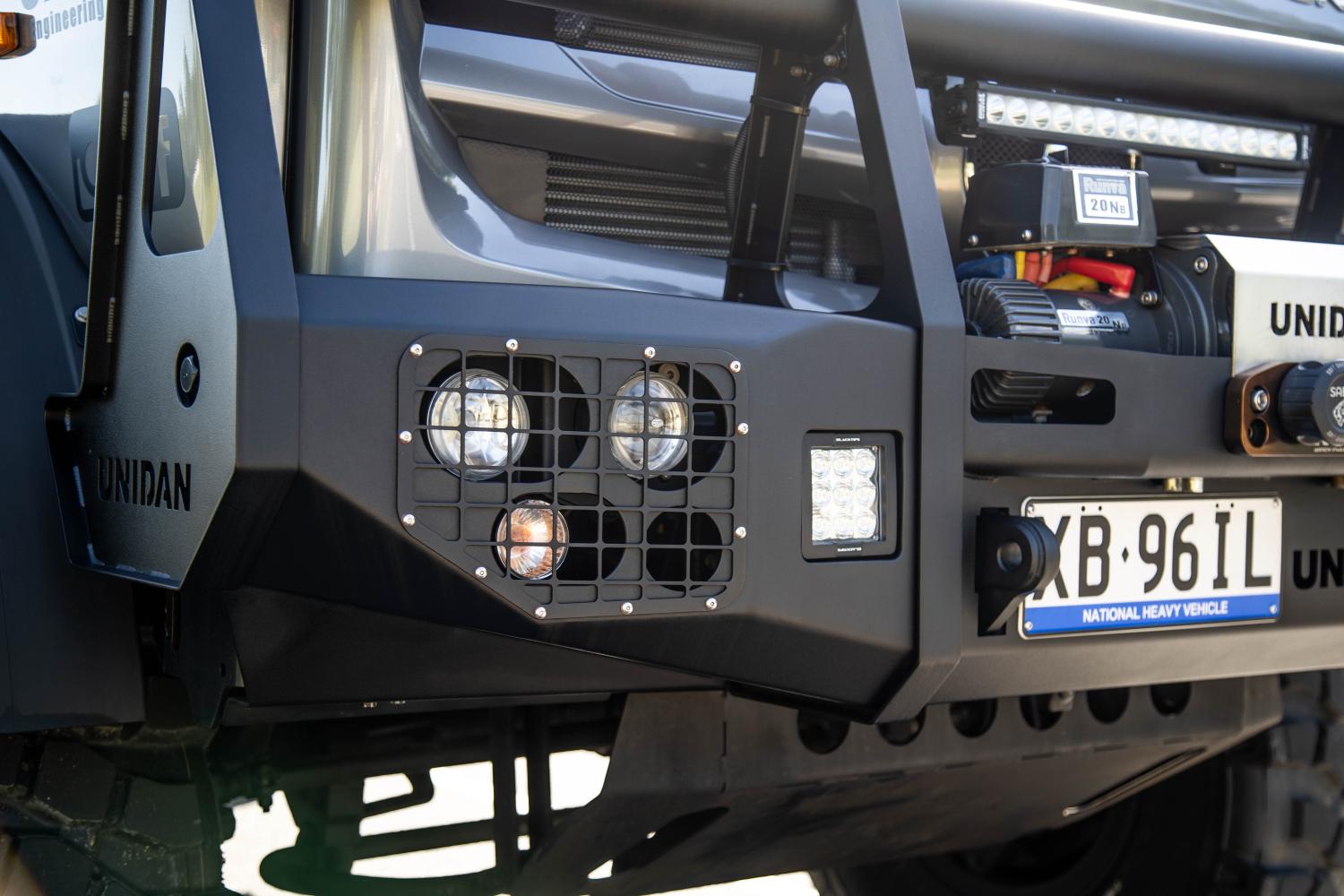

  • High Style Bull Bar
  • Certified Rear Crossmember with integrated rear winch mount and 2 x 9,000kg rated recovery points
  • Front & Rear 20,000lb Runva Electric Winches
  • Certified 7,500kg Tow Mount with 50mm reducer sleeve
  • Unidan Battery Box Relocation with new upgraded batteries

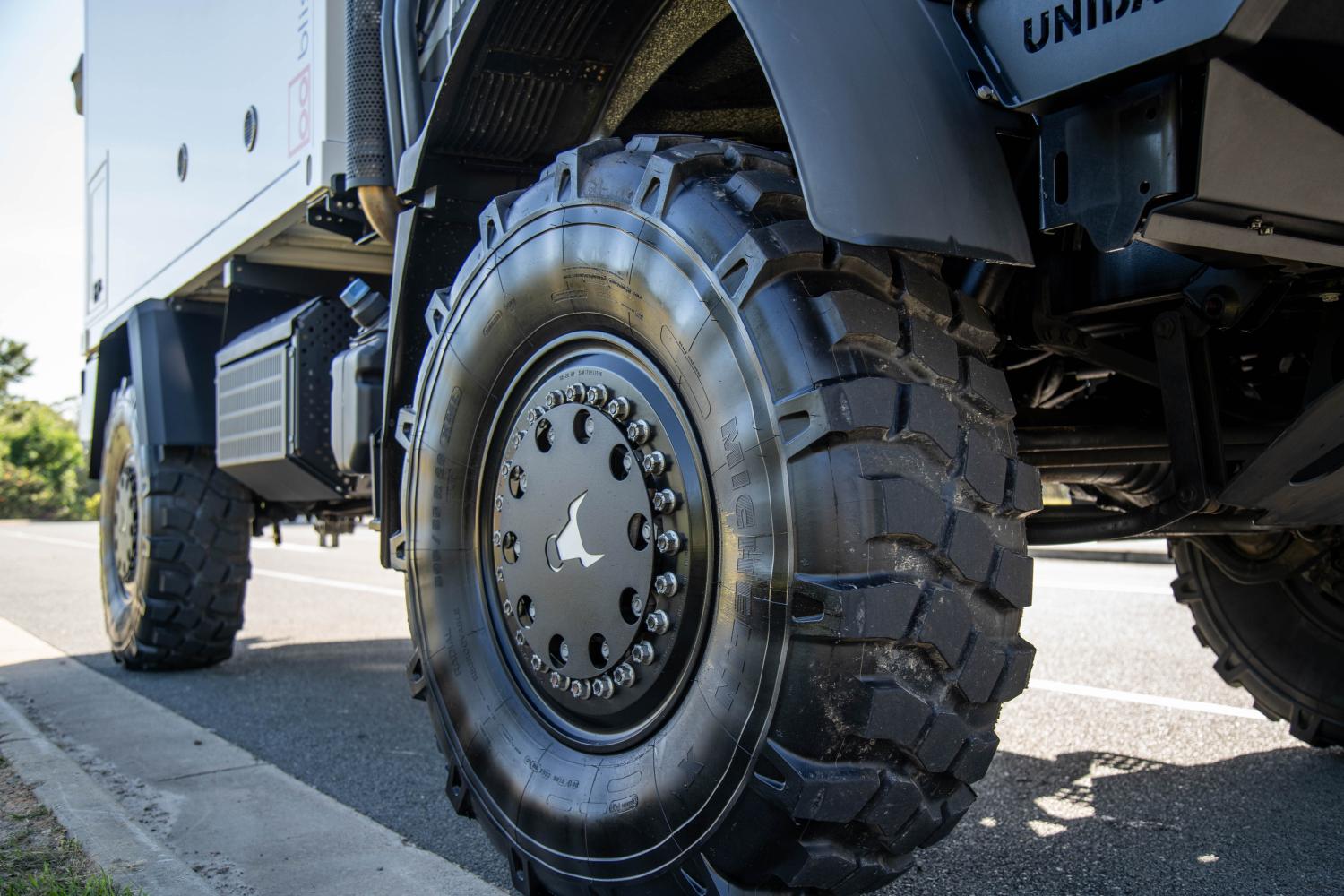

  • Hutchinson Rims with Michelin MXL 395/85R20 Tyres
    • Wider guards for offset
    • Guard support brackets
    • CTIS Covers

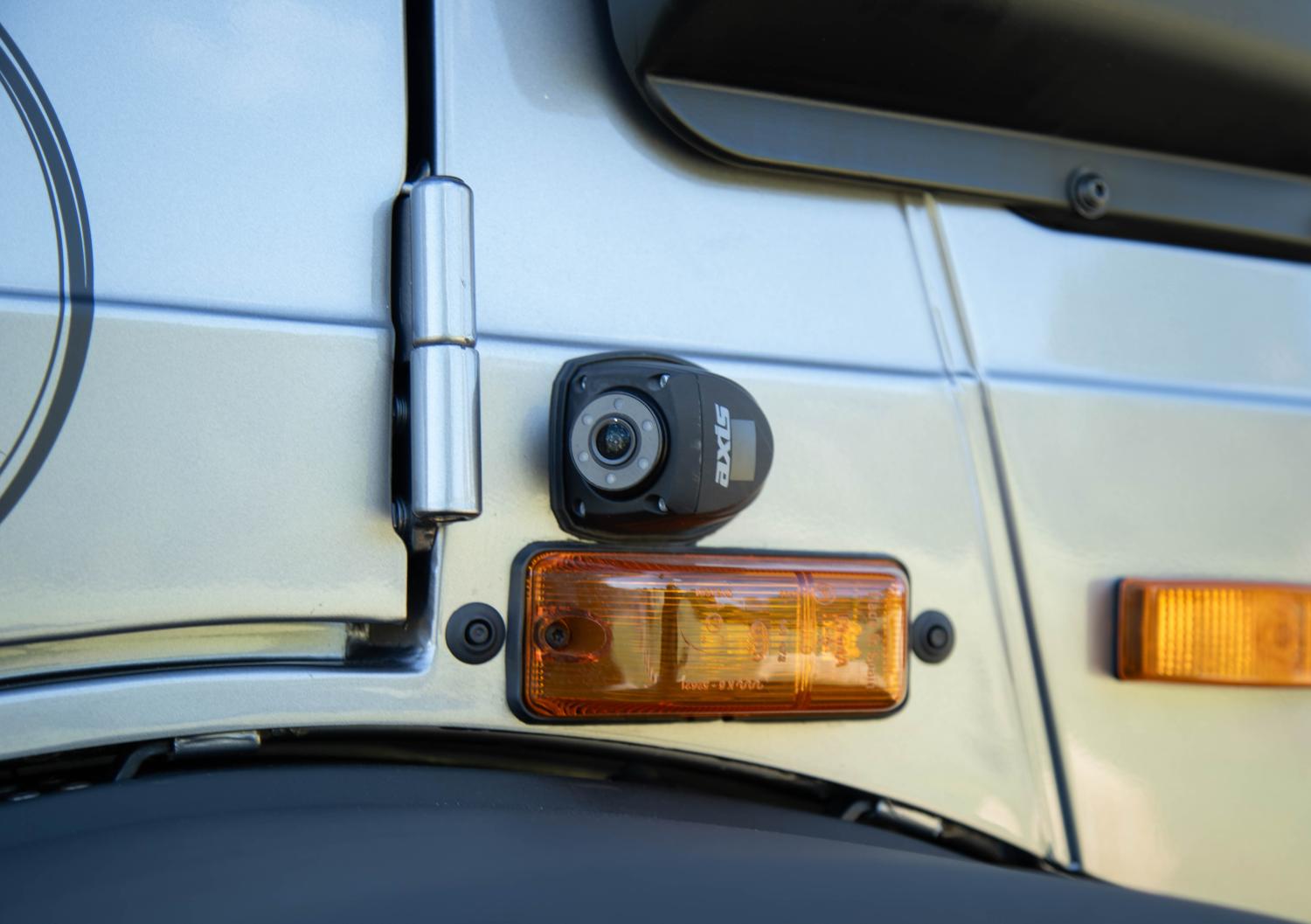

  • 4 way camera system with DVR recording
  • Polaris entertainment system with speaker system and subwoofer
  • Uniden UHF Powdercoat exhaust covers black
  • Windscreen accessories bar with RAM mount accessories and integrated charging points (12V)
  • Saber Winch Fairlead Savers
  • Air tank relocation for outdoor underbody boxes

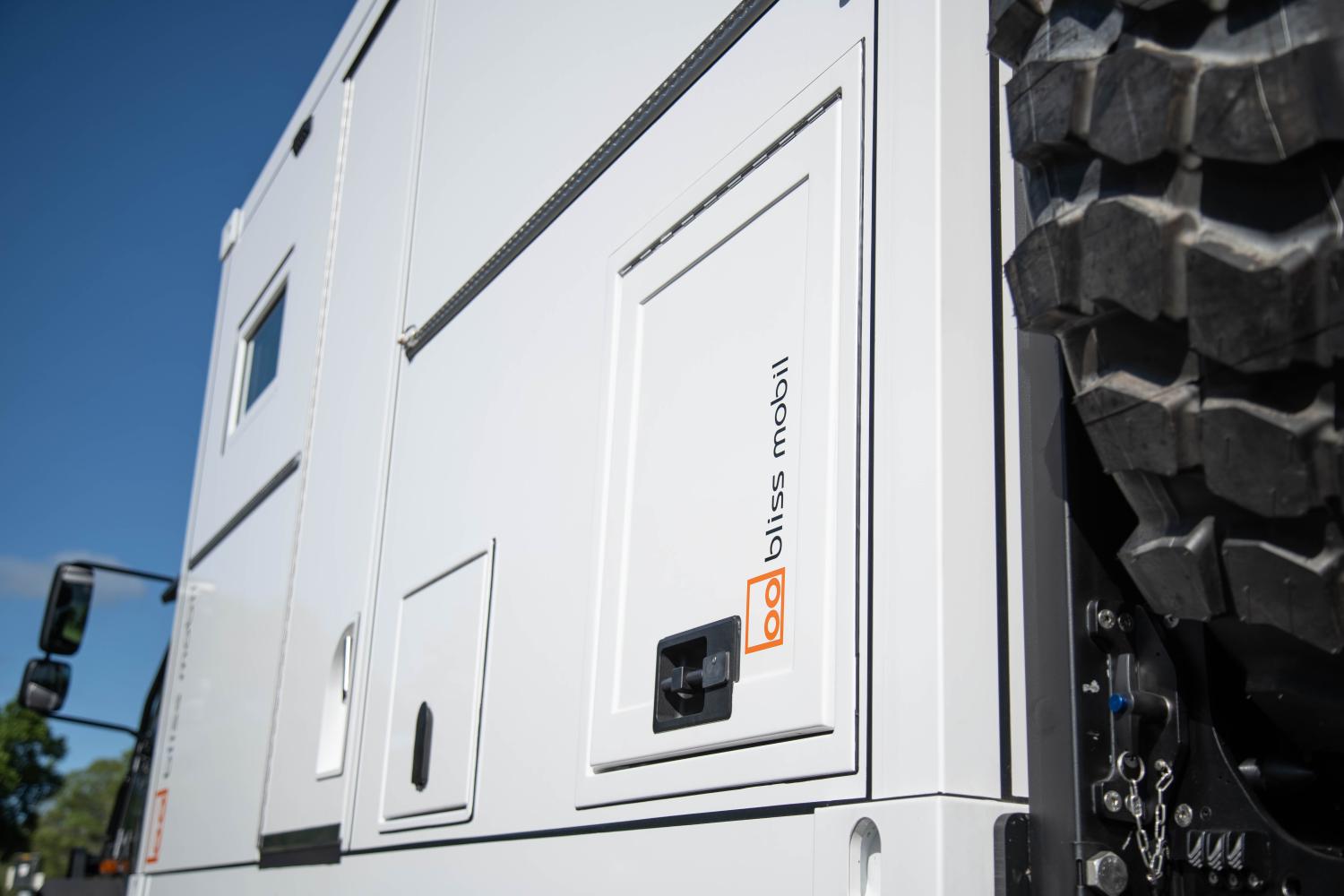

    BLISS MOBIL 13FT - TYPE 4

    standard specifications from Bliss Mobil

  • Dry weight of 1800kg
  •  Length of 4100mm (suitable for trucks with 3200-3800mm wheelbase)
  • Built with aluminium frame and 60mm composite walls with a PET core
  • 3 - Point Locking System
  • 460L Water Tank
  • 150L Greywater
  • 180L Blackwater Tanks
  • Water Filtration System
  • 4 x Solar Pannels generating a combined 0.96kW
  • 400ah 24V Lithium Battery

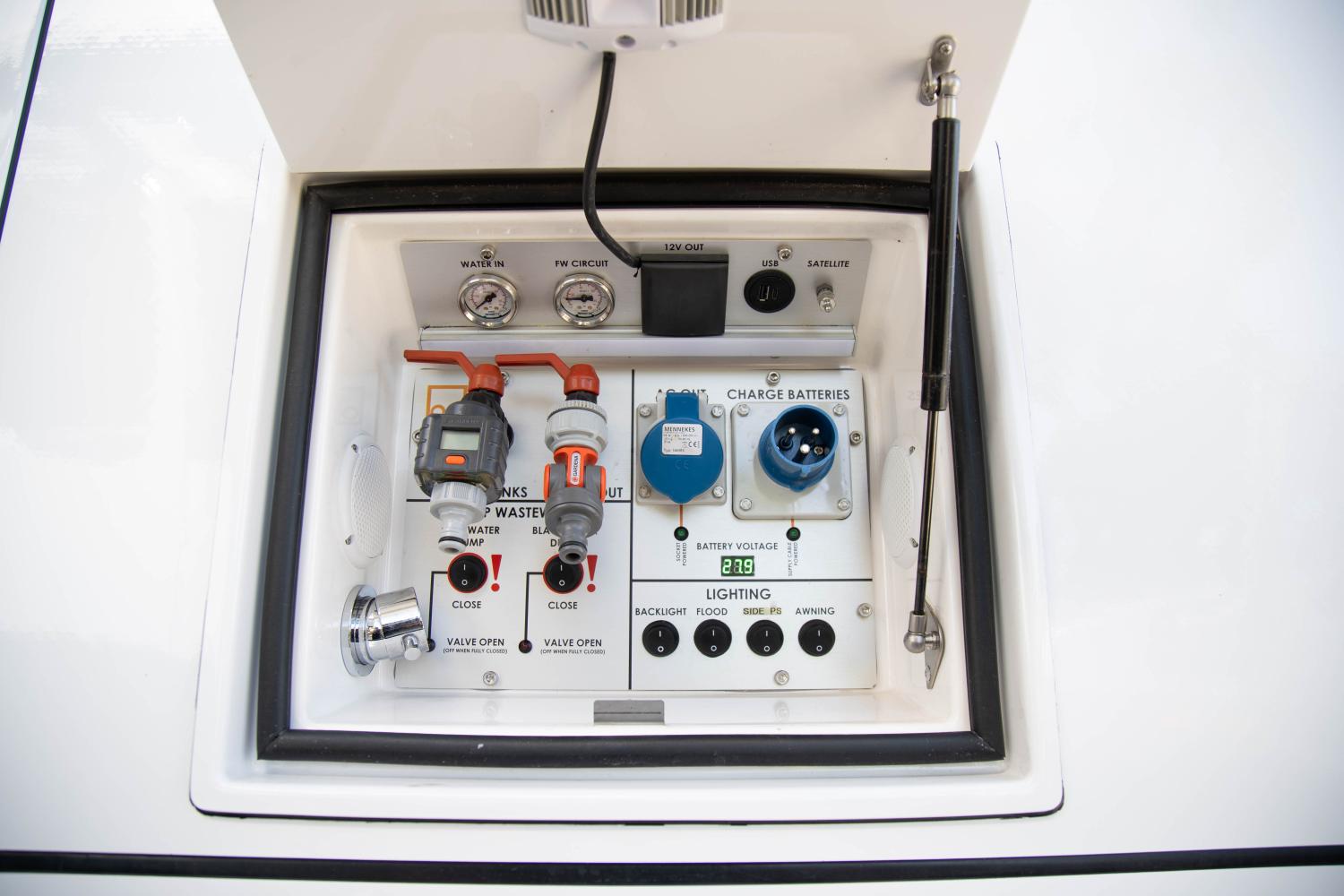

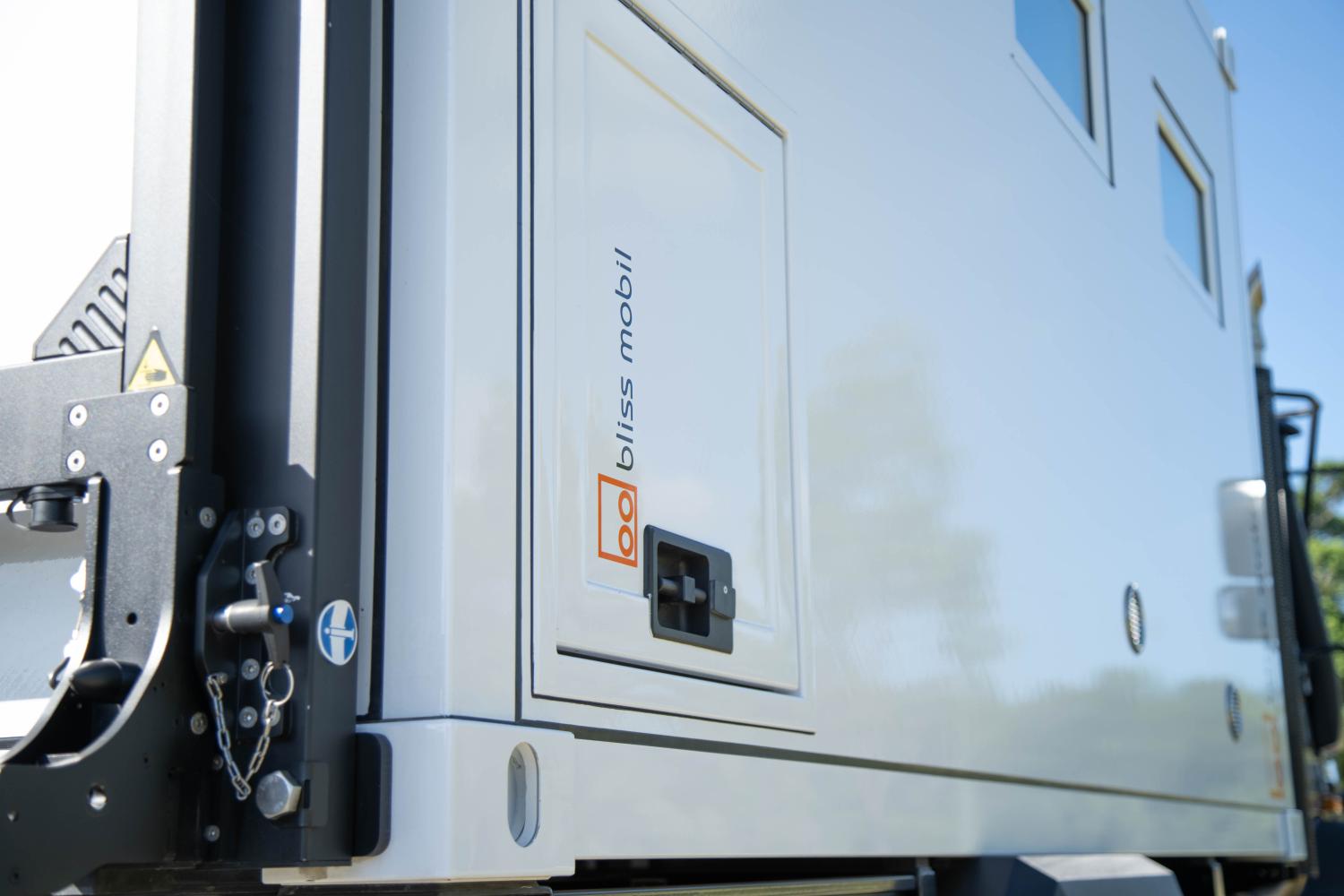

  • External Hatch for Power & Water

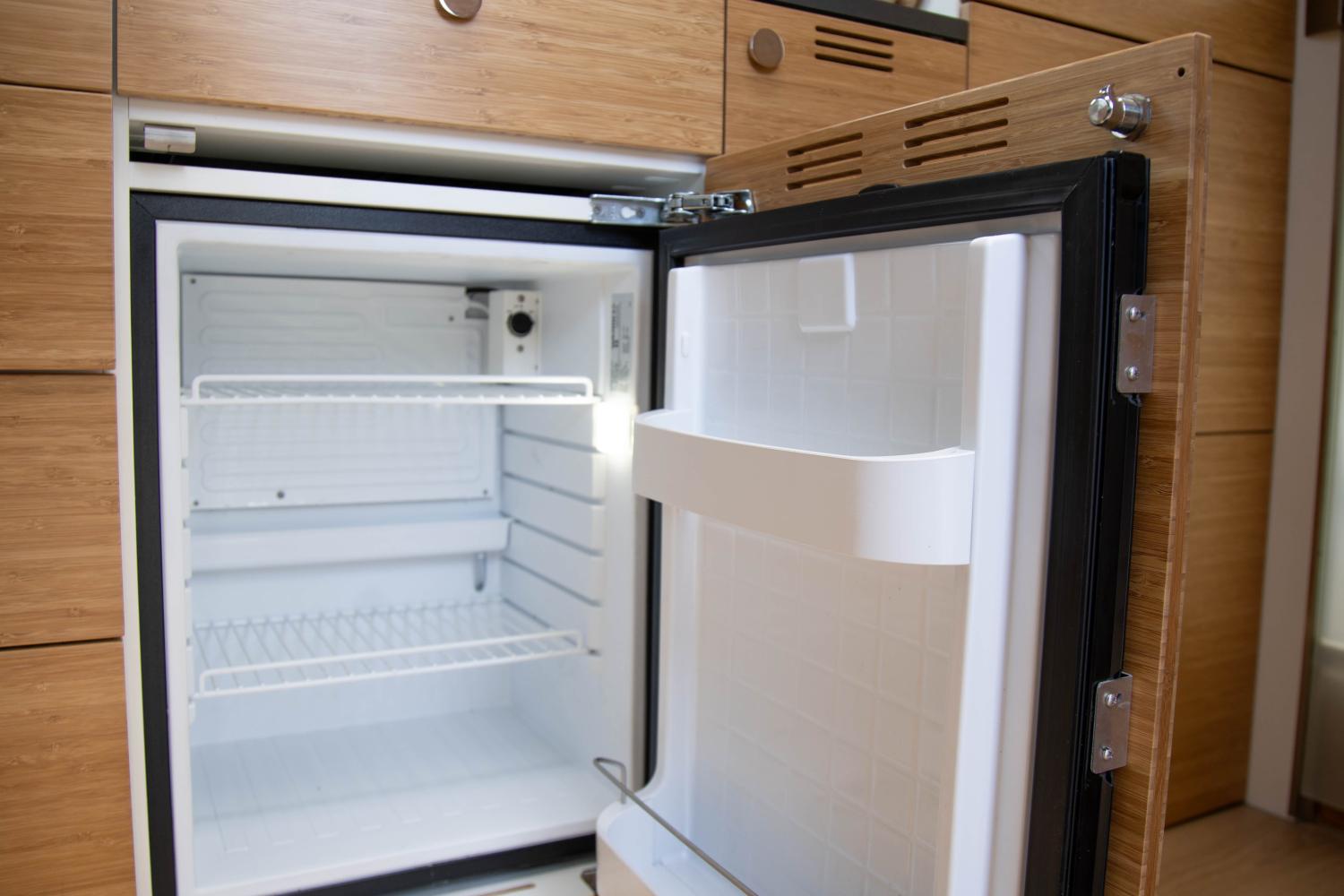

  • 45L Fridge/Freezer
  • 75L Compressor Upright Fridge

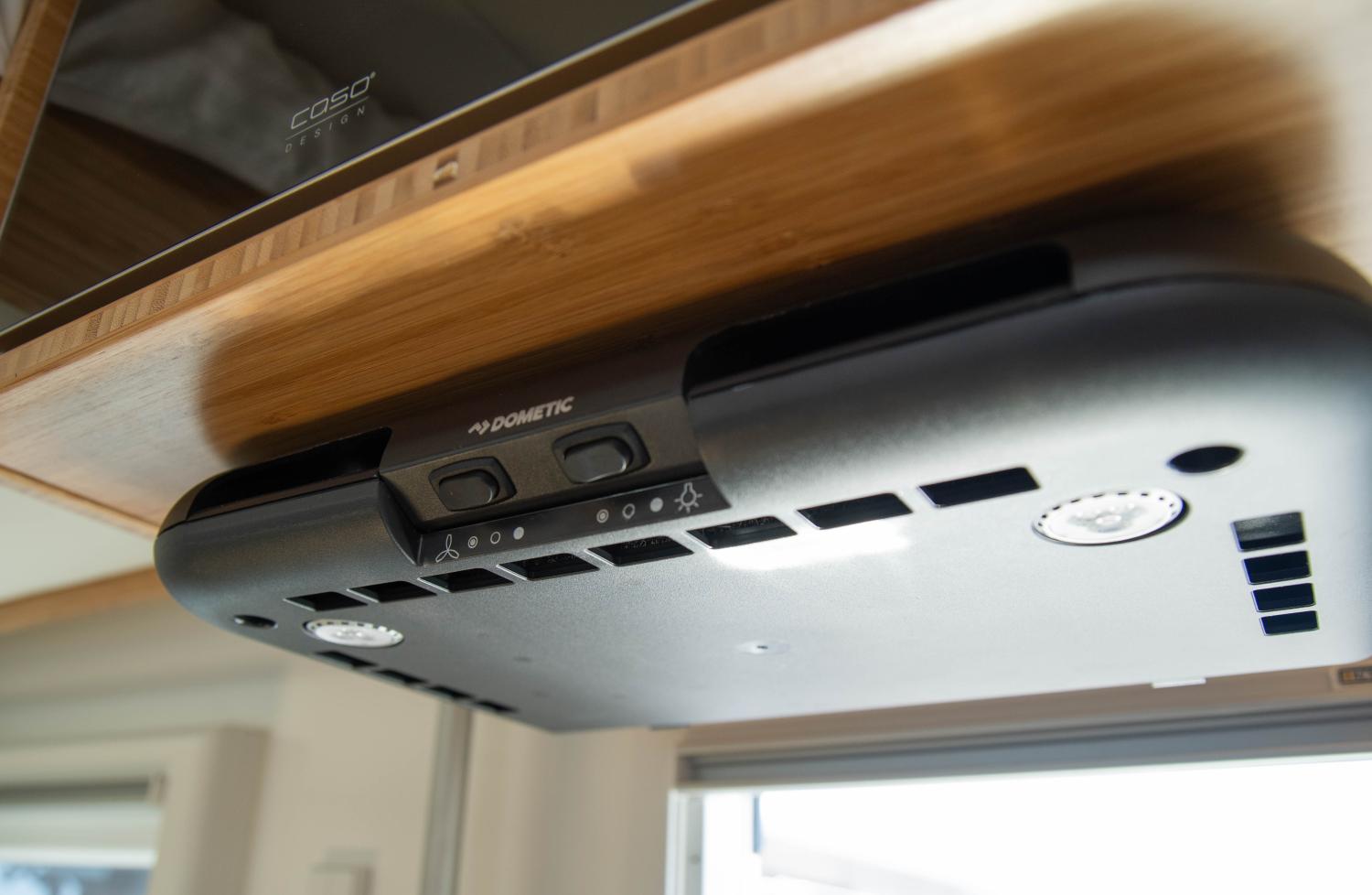

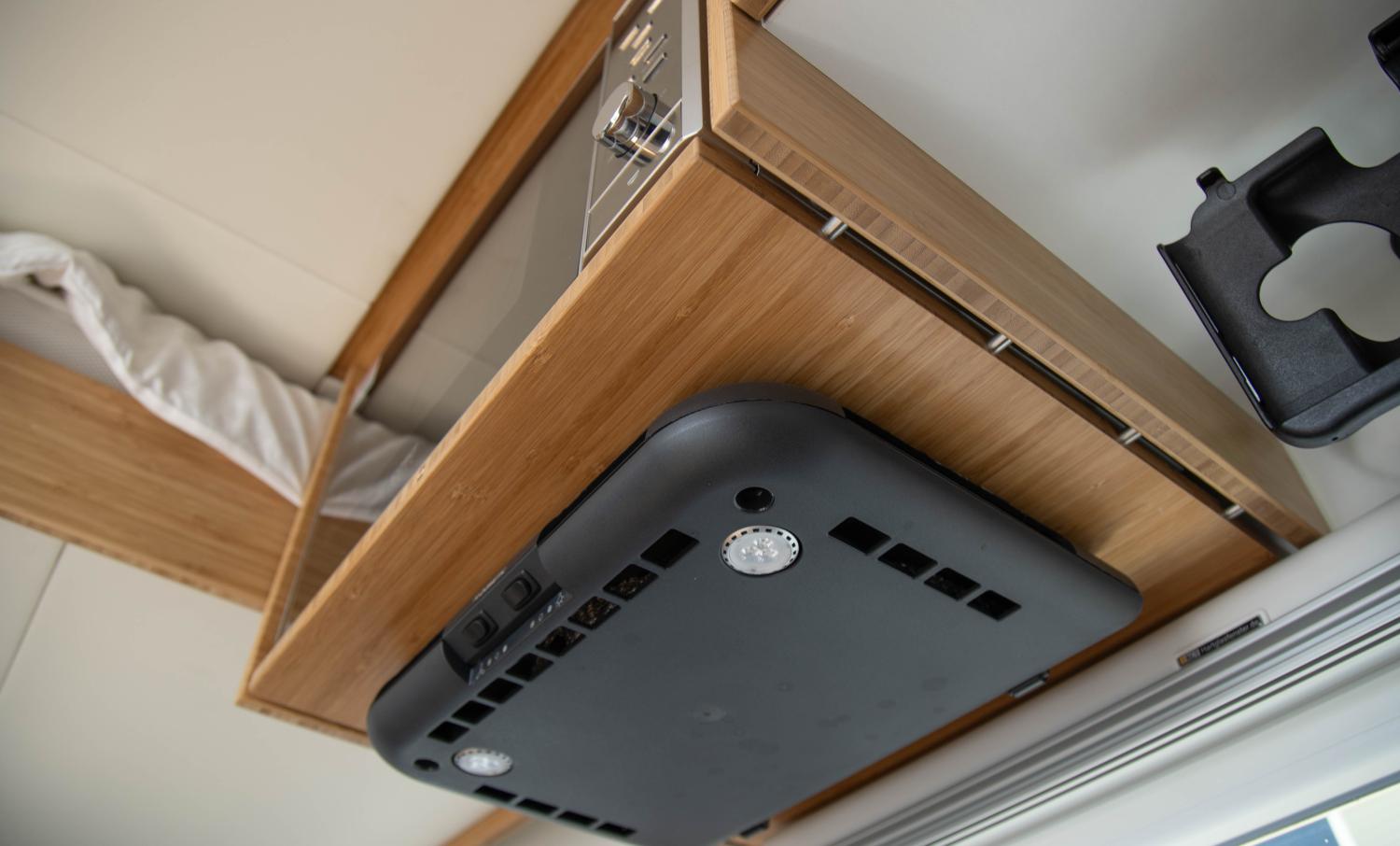

  • Reverse Cycle Air-conditioning
  • Diesel Heating
  • Heated Flooring
  • Smart Home System with Tablet Control (with manual redundancies)

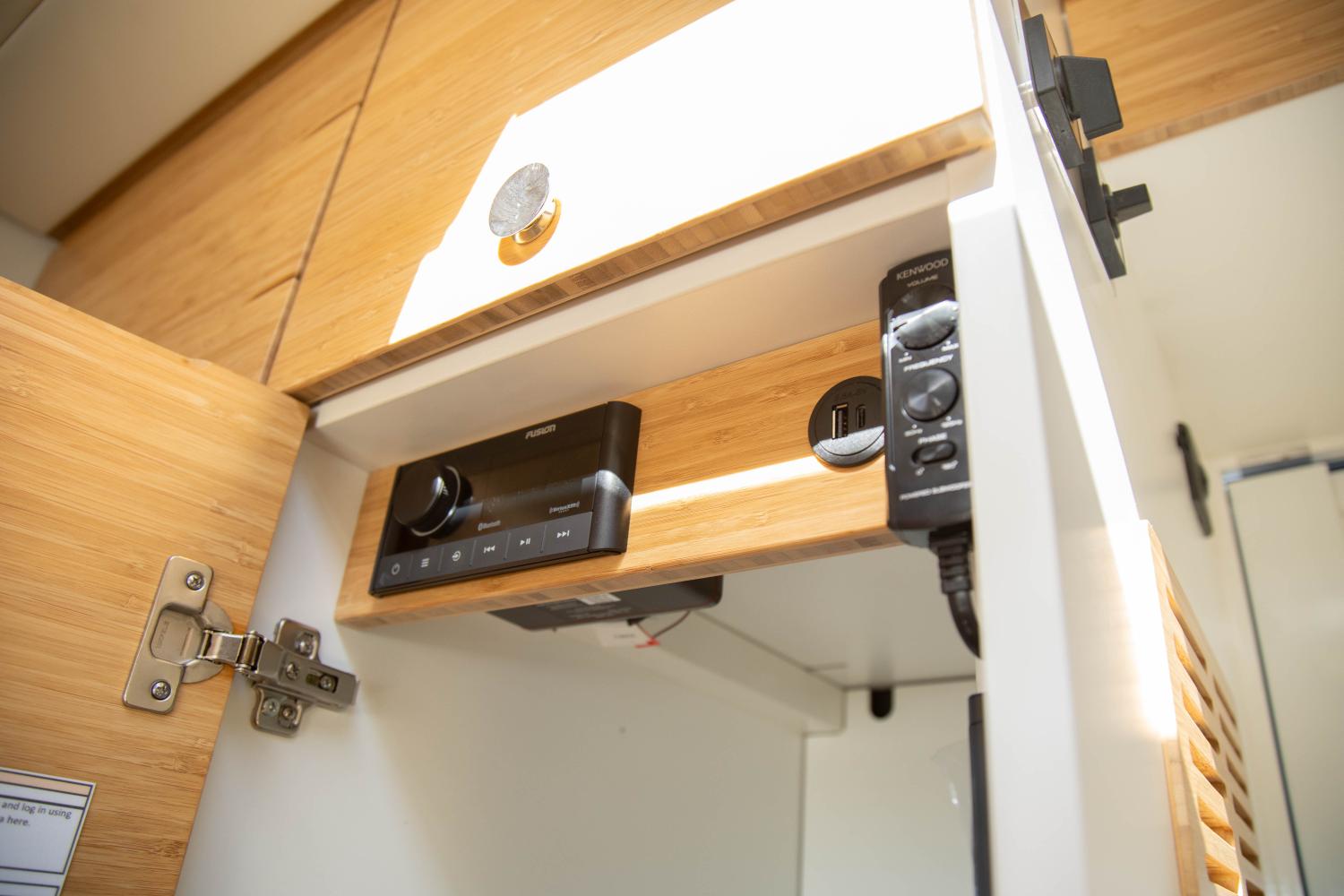

  • Comprehensive Audio Entertainment System

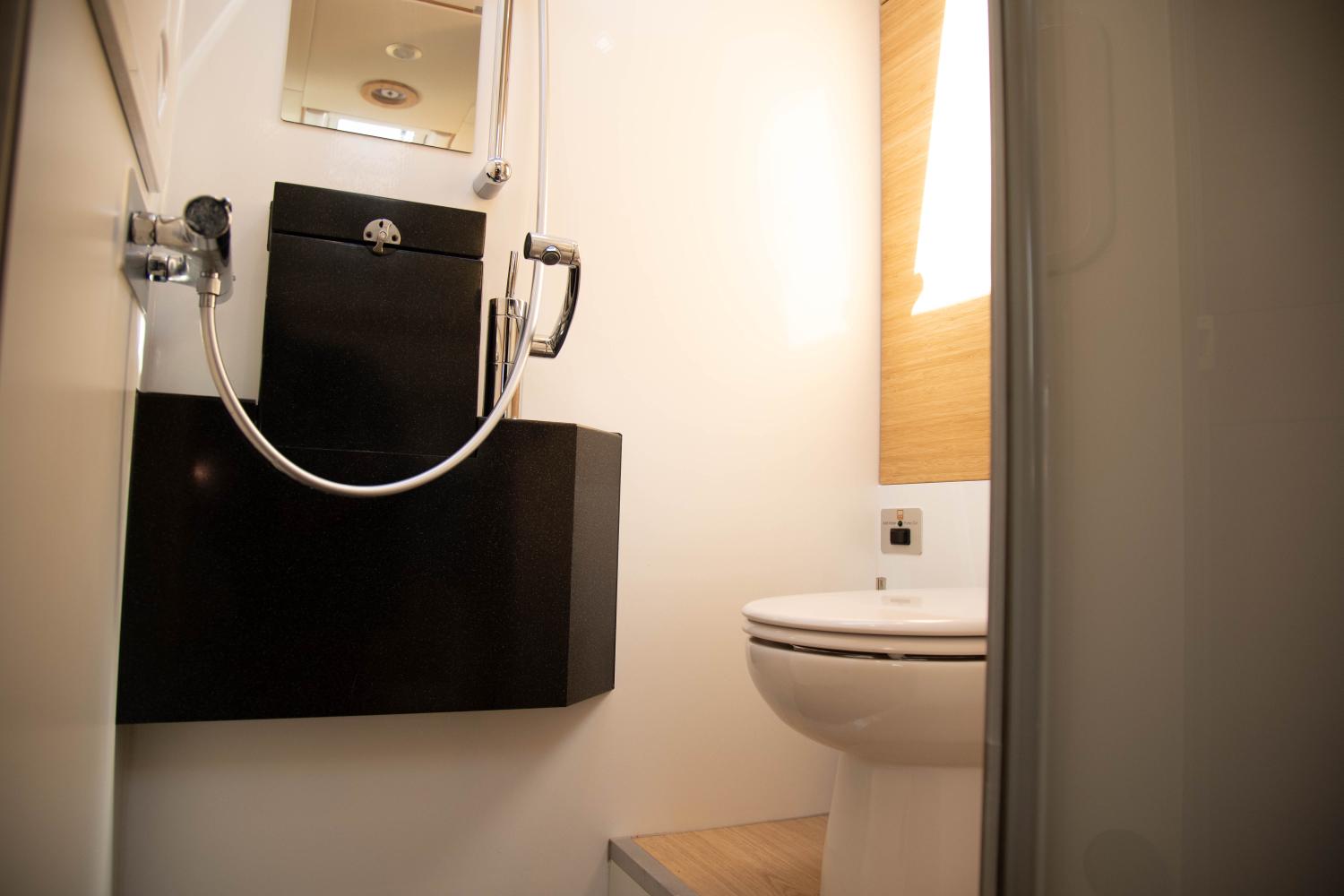

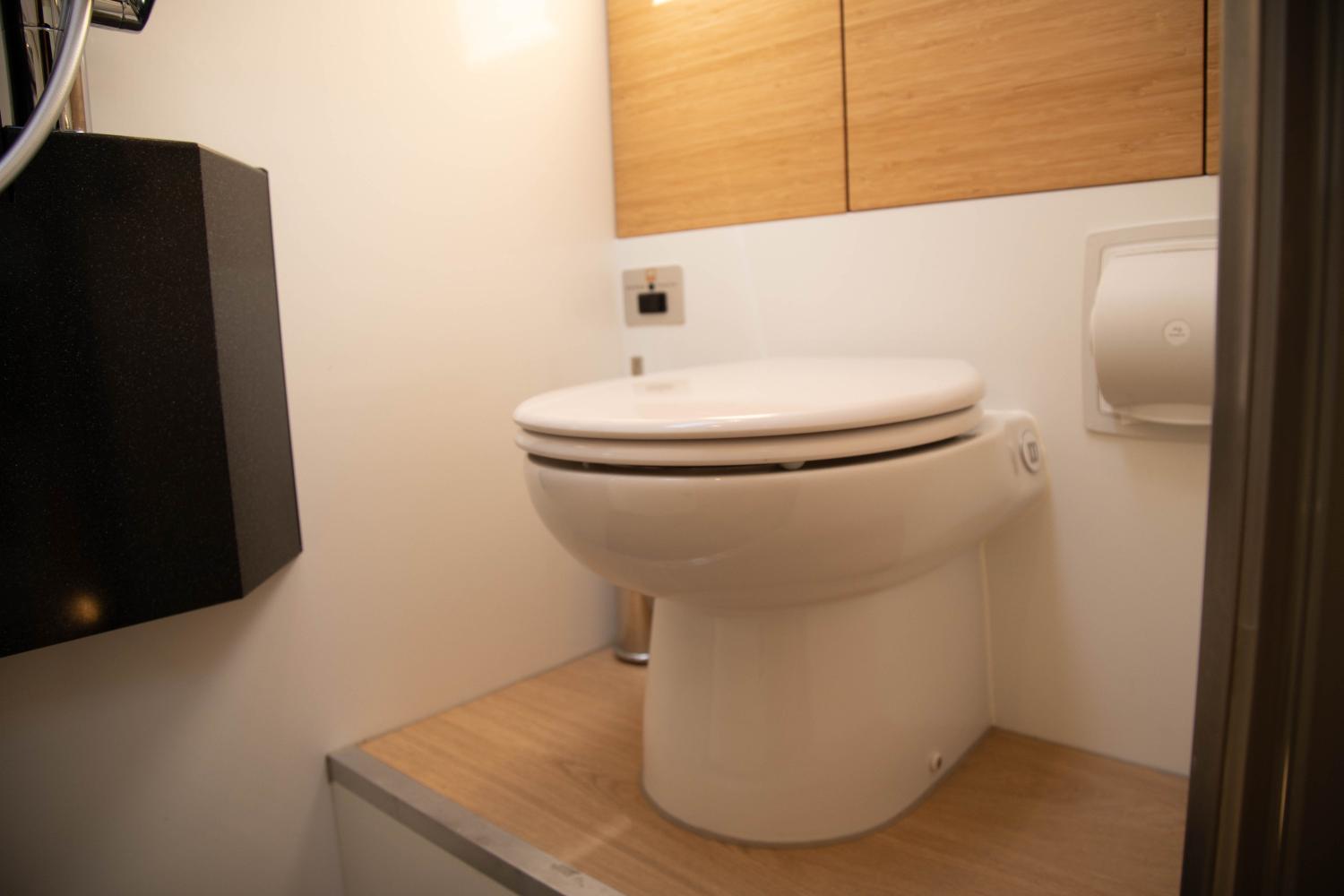

  • Complete Shower/Bathroom
    • Glass Sealed Door
    • Sealed Storage Compartments

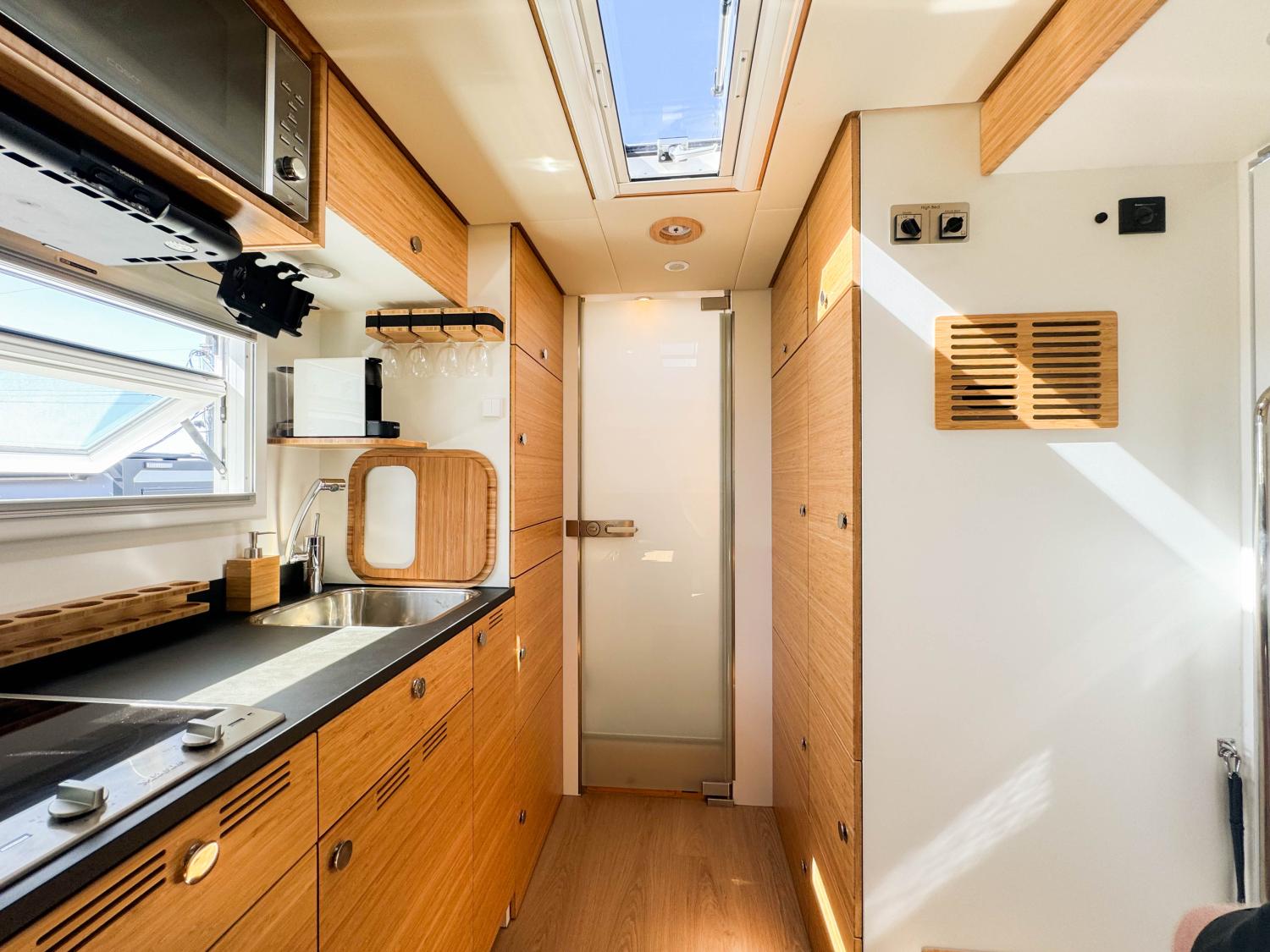

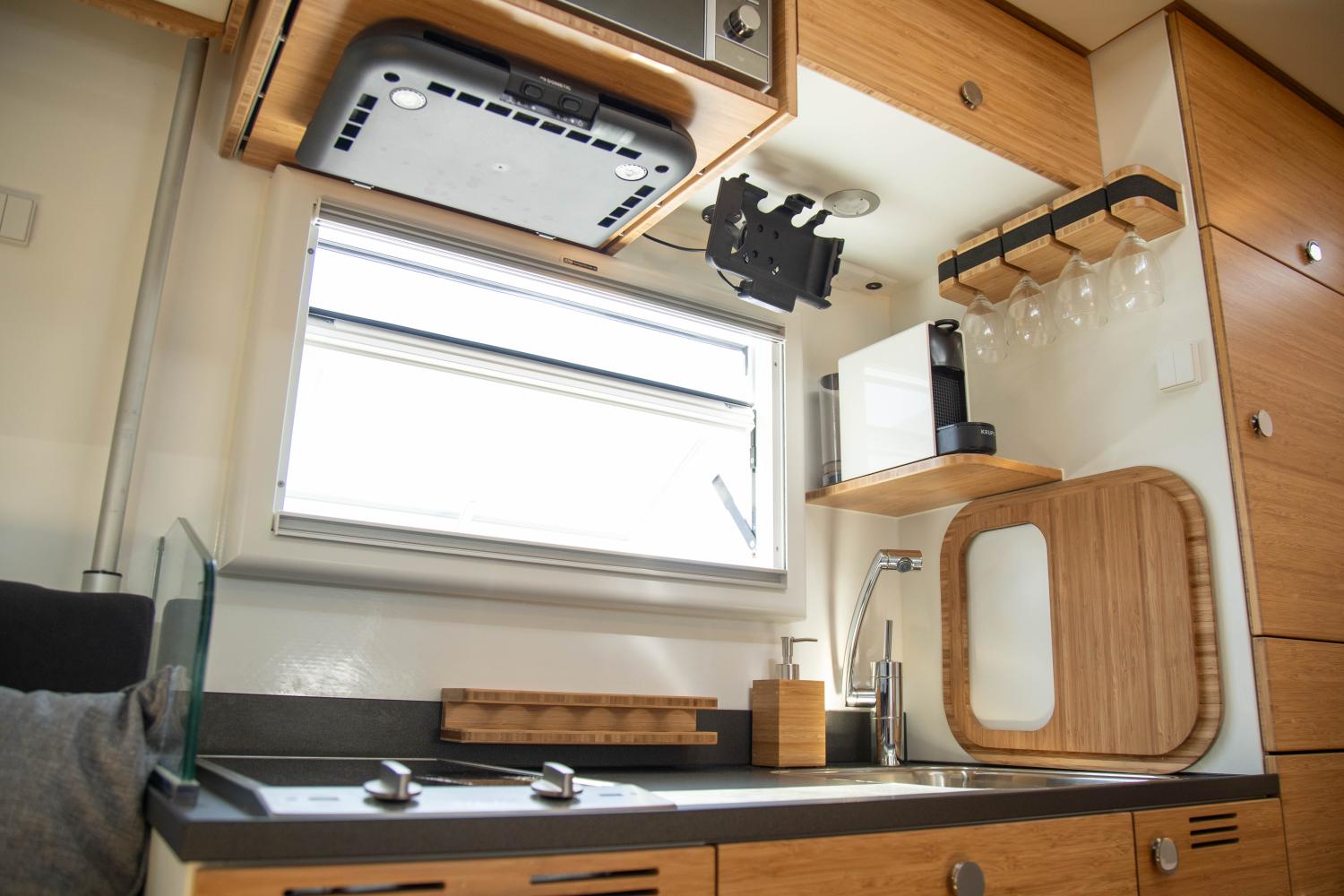

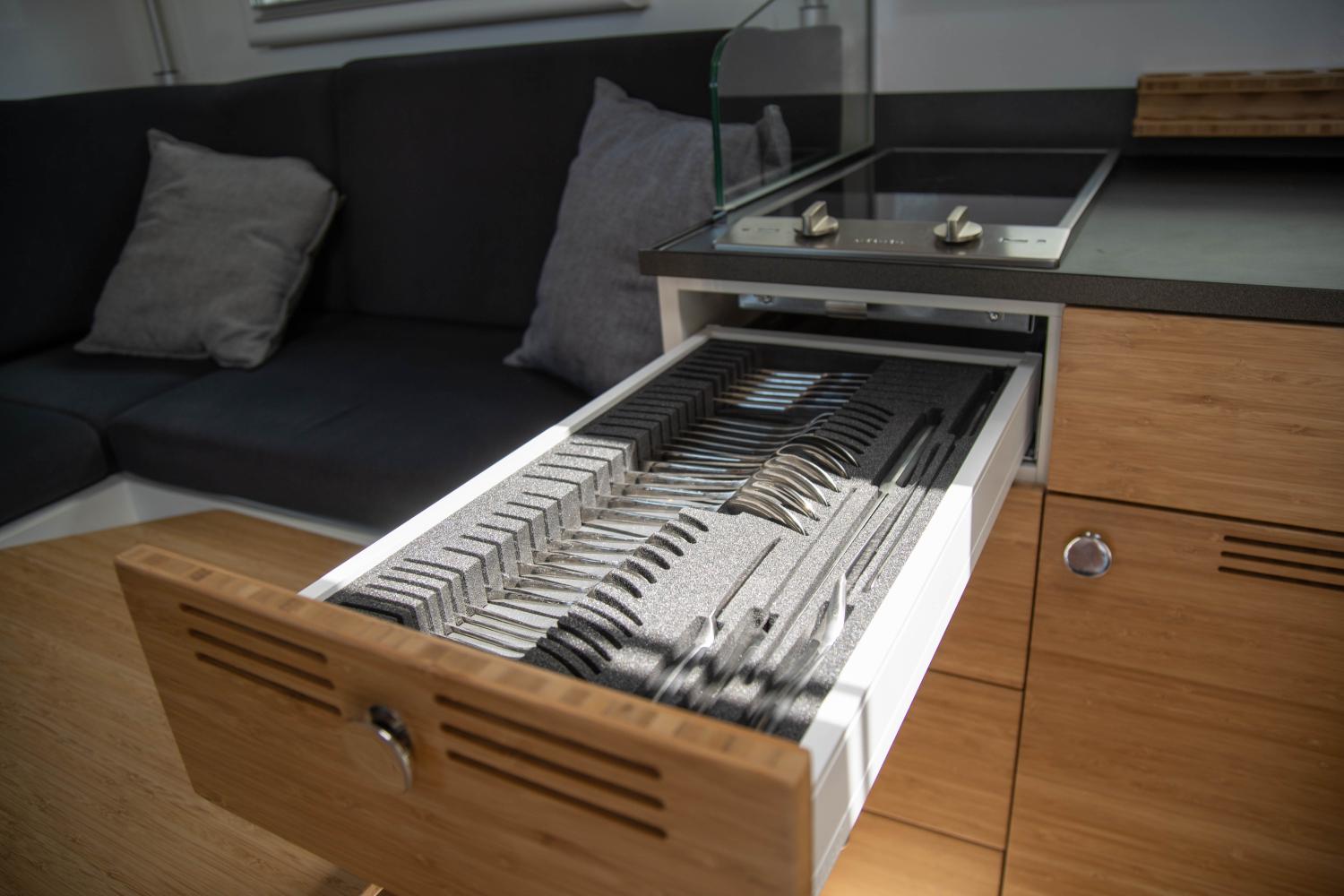

  • Equipped Kitchen
    • Induction Stove

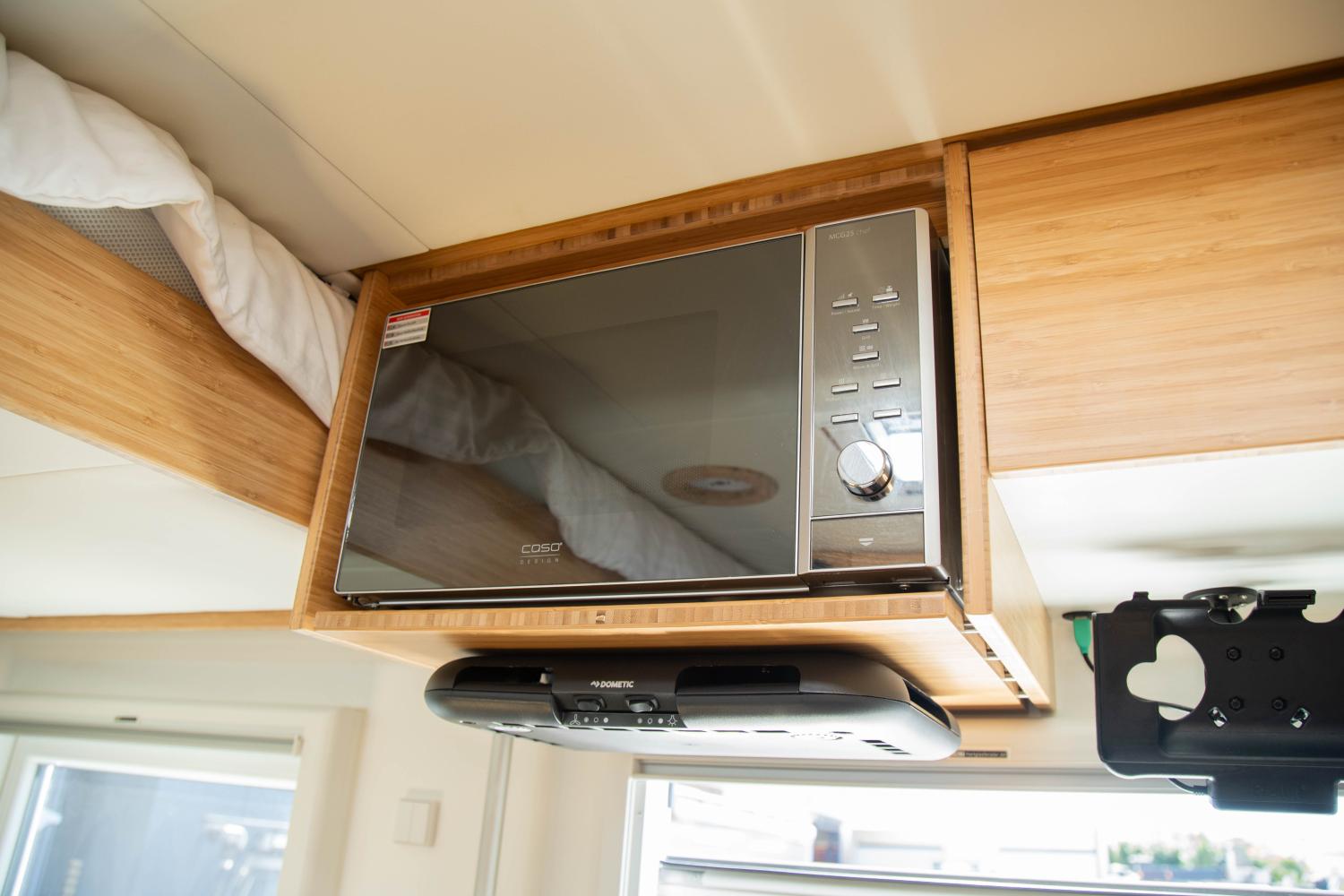

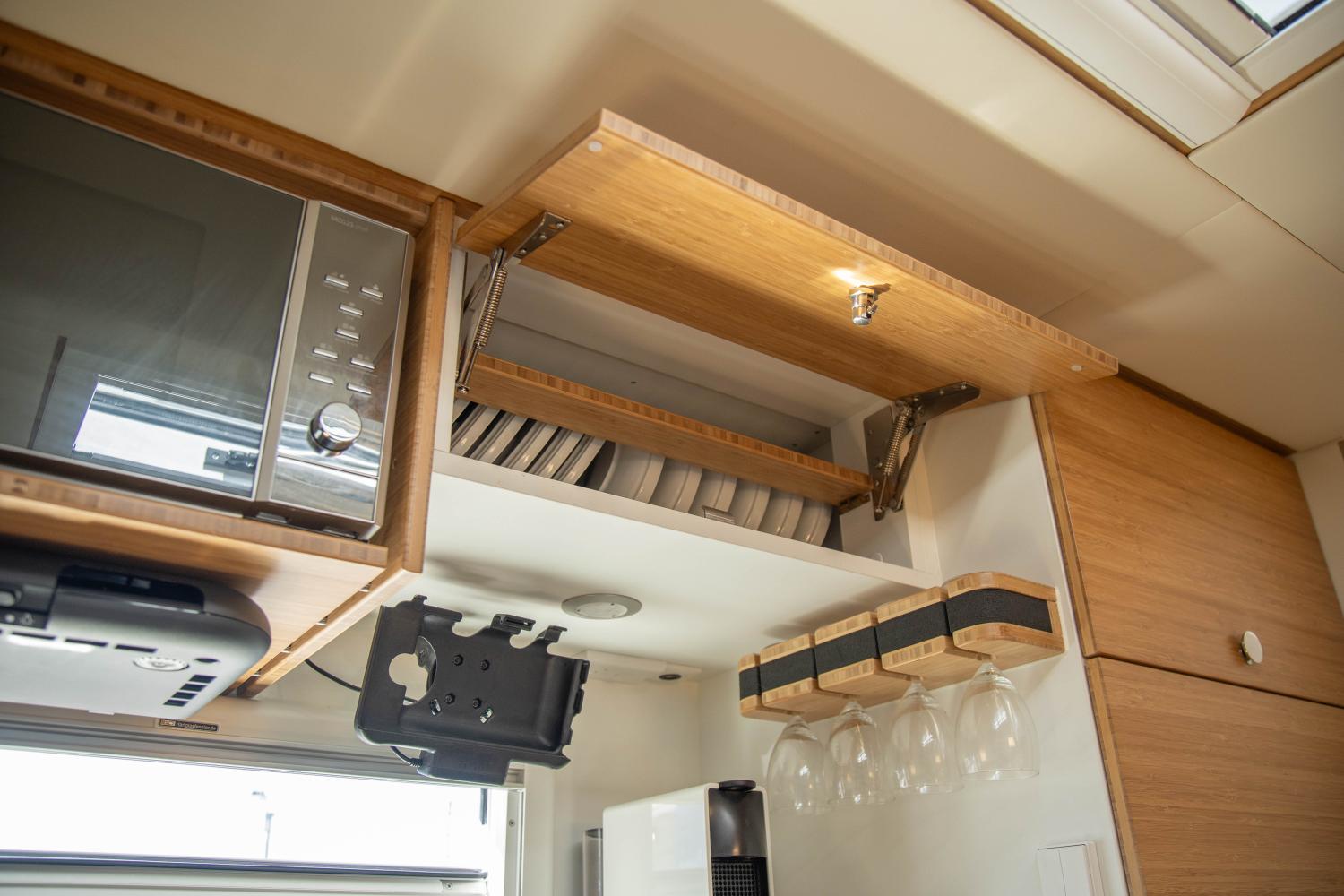

    • Microwave/Oven

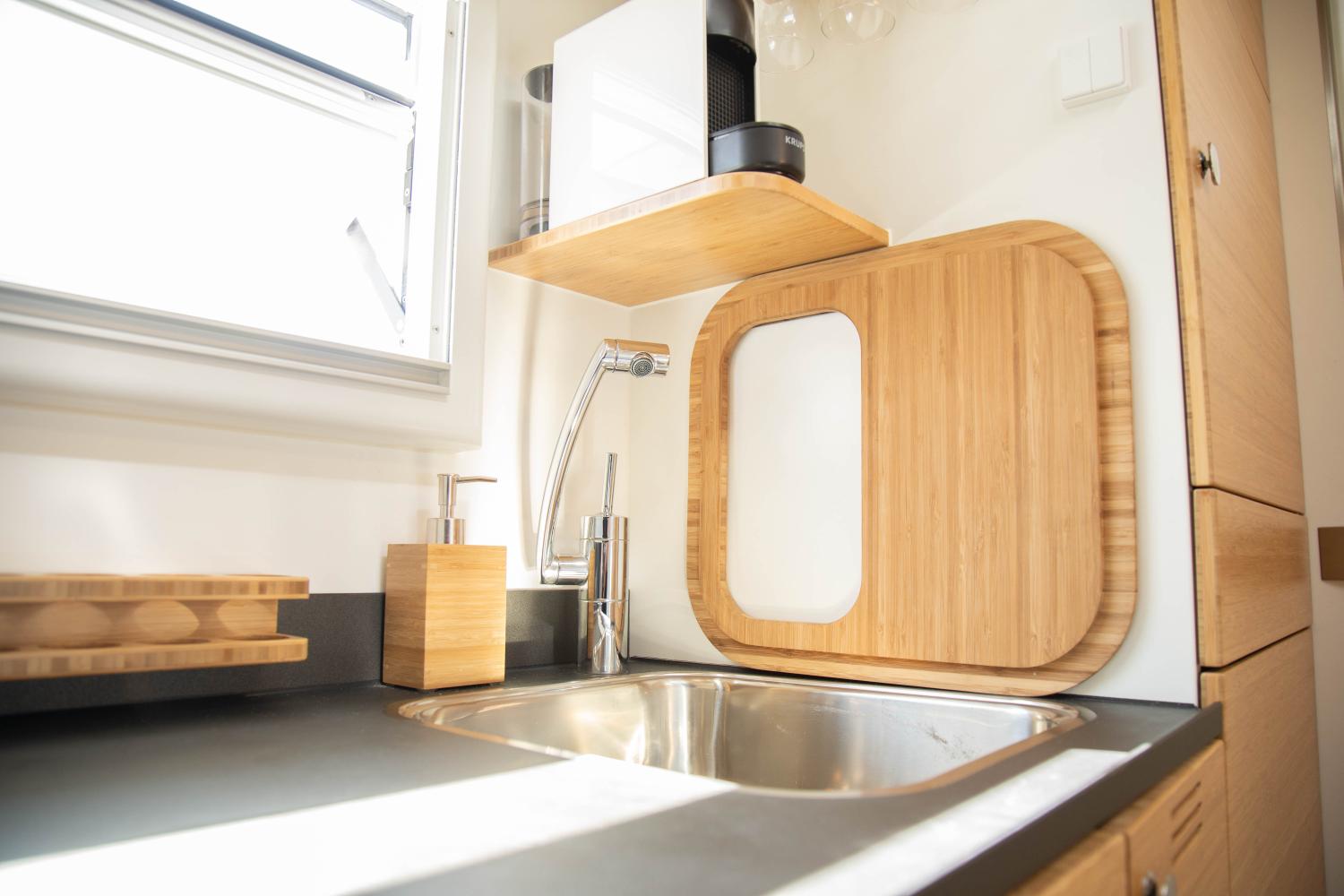

    • Sink with Hot & Cold Water
    • Range Hood

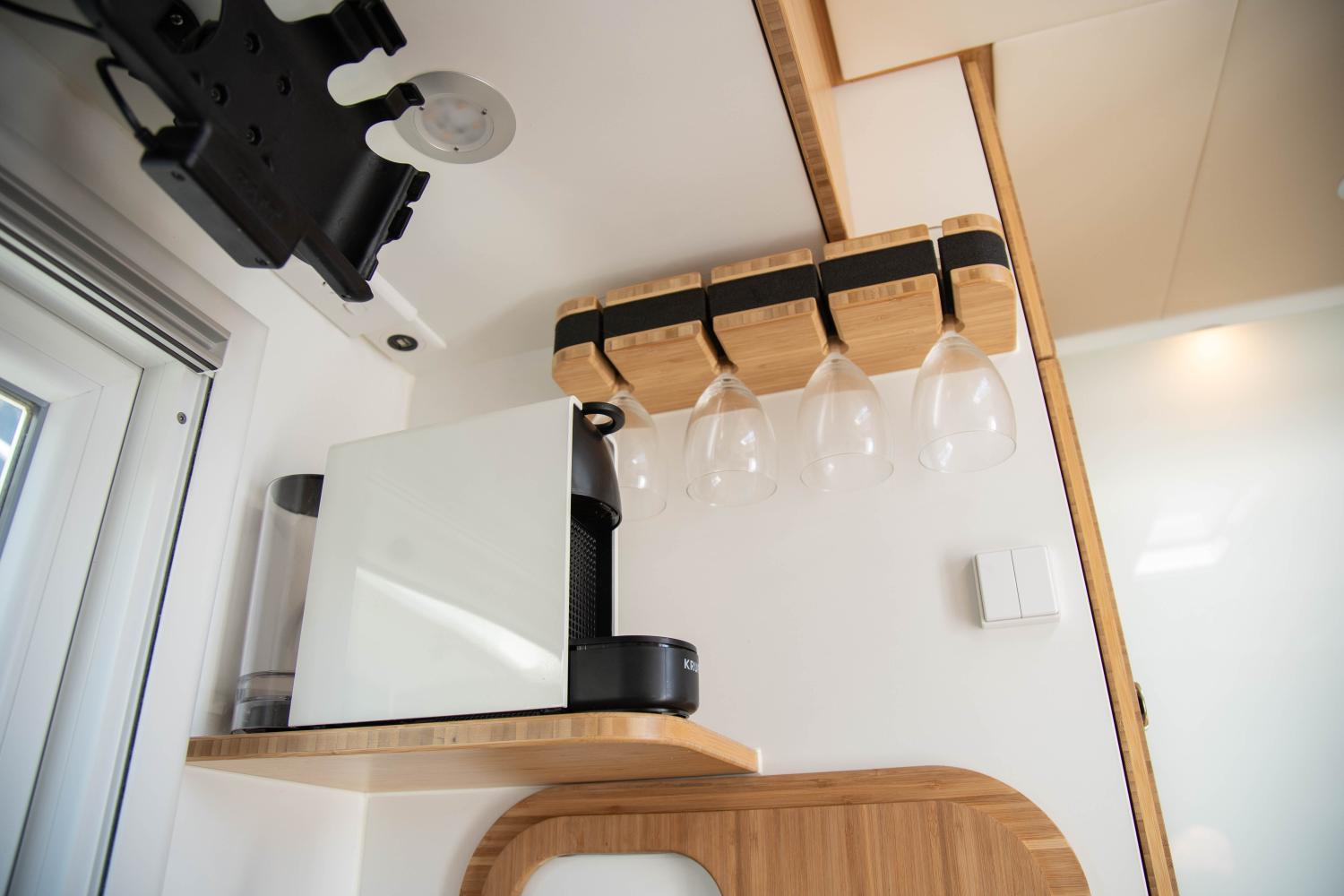

    • Built-in Coffee Machine


    BLISS MOBIL 13FT - TYPE 4

    with additional specs listed below

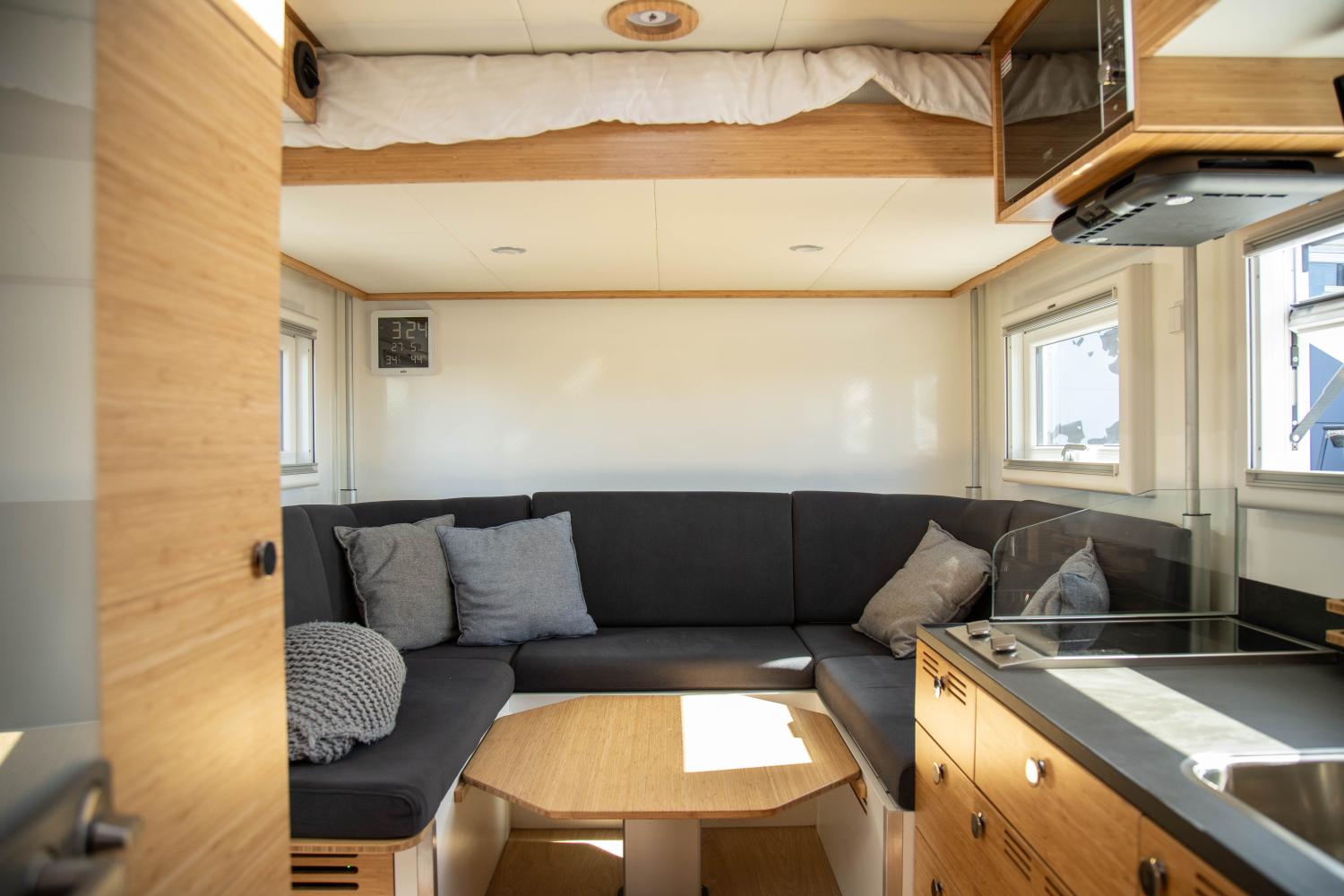

  • Mirrored layout
  • Towel Heater in bathroom
  • Foldable table system in dinette
  • Fine Mesh shutters for windows and roof hatches
  • Folding sink in bathroom

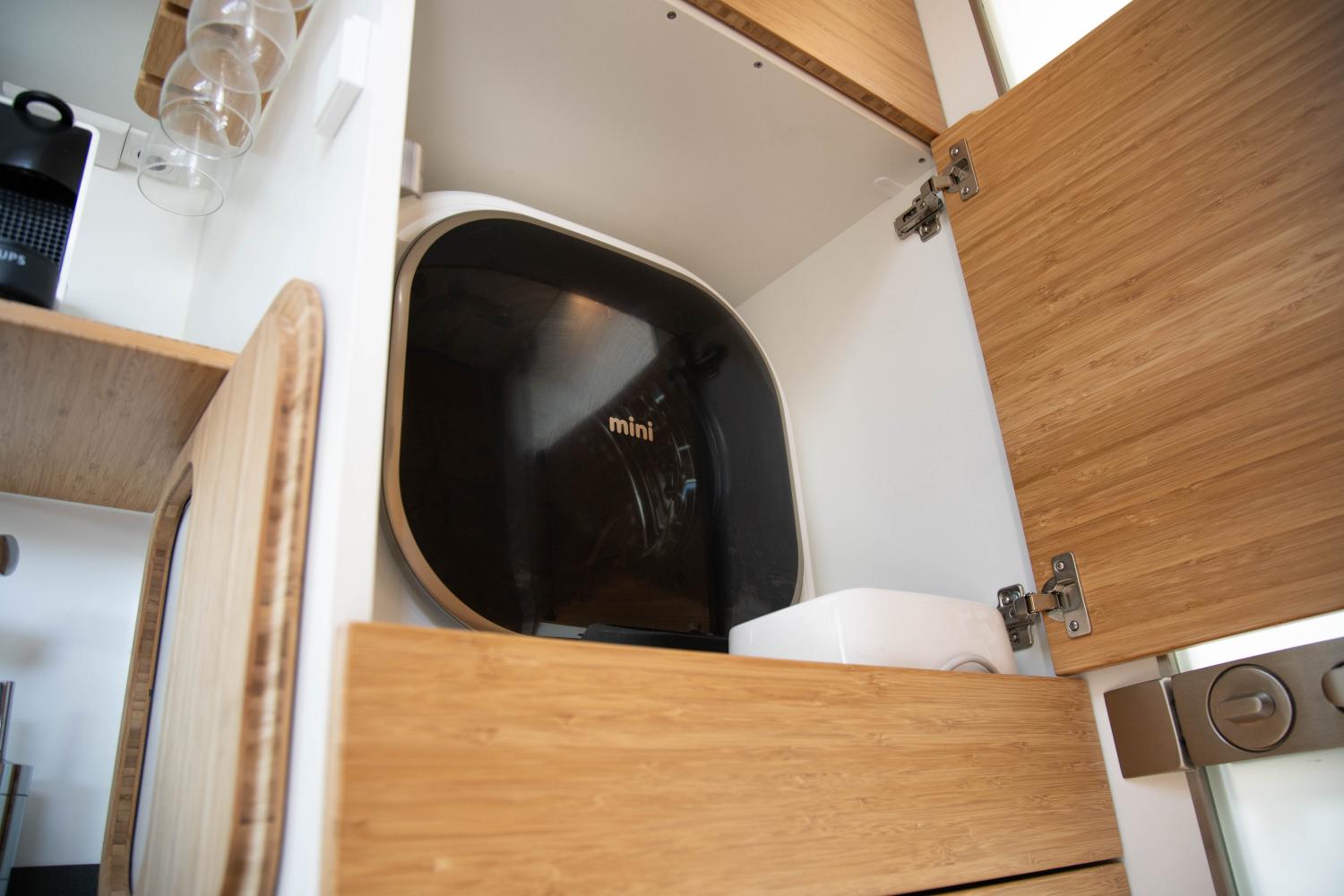

  • Washing machine
  • Awning batwing with extendable arms
  • Kitchen set
  • Australian specs – 230V
  • 360-degree camera system with DVR recording
  • Additional exterior lighting
  • Additional exterior lighting mounted on bike carrier
  • Motorbike/spare tyre carrier
  • Storage box left side on subframe
  • Storage box right side on subframe

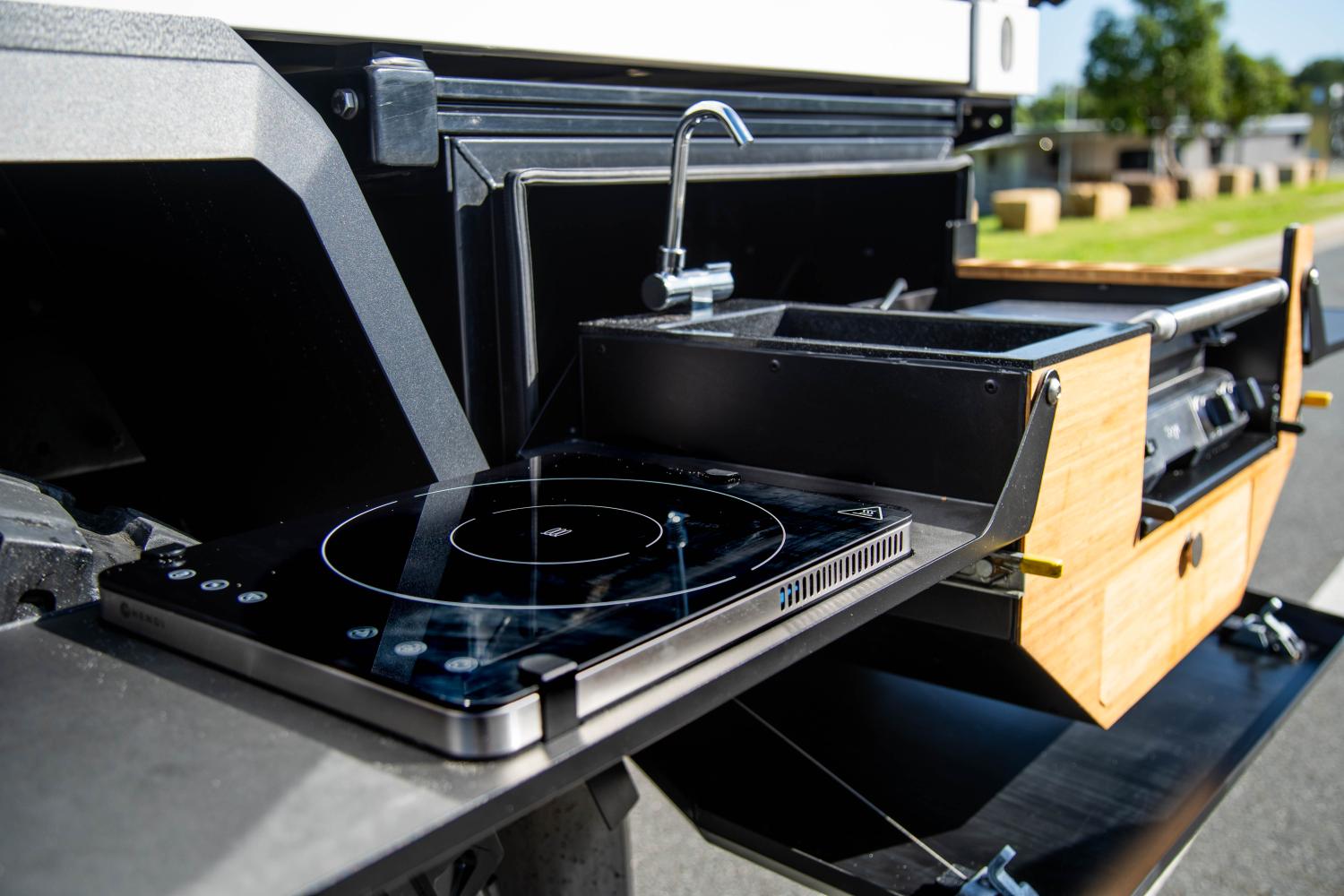

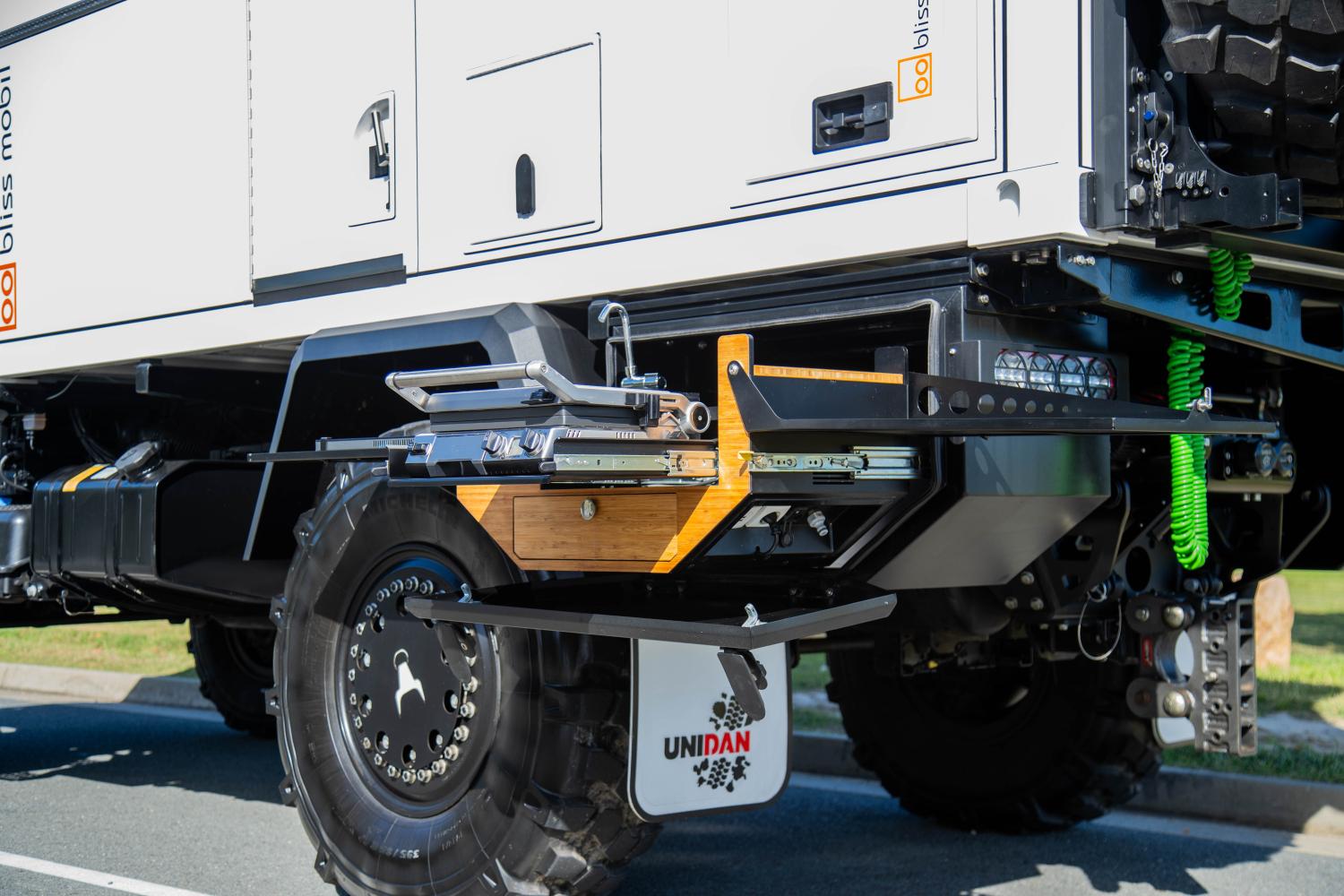

  • Outdoor kitchen

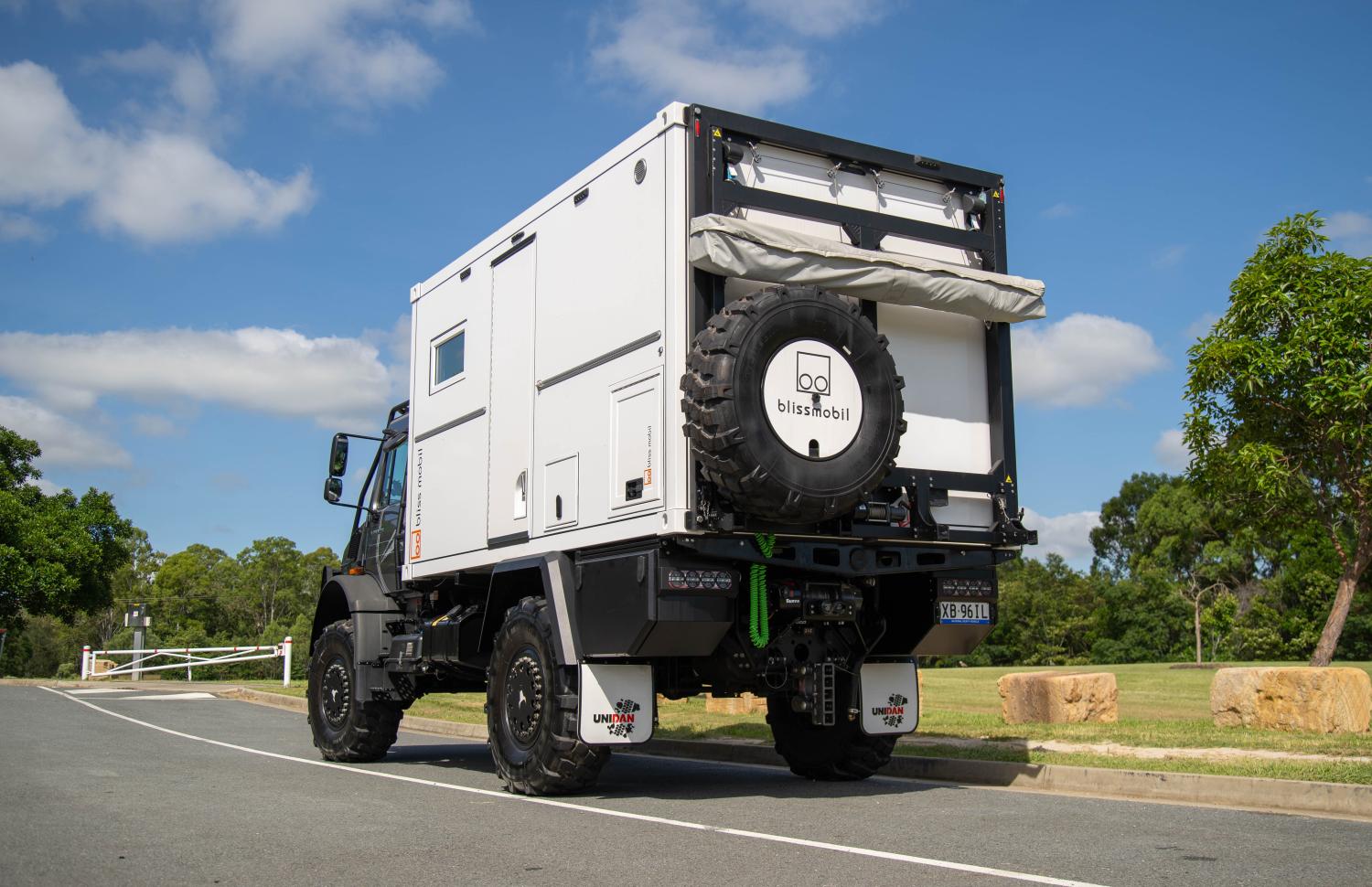

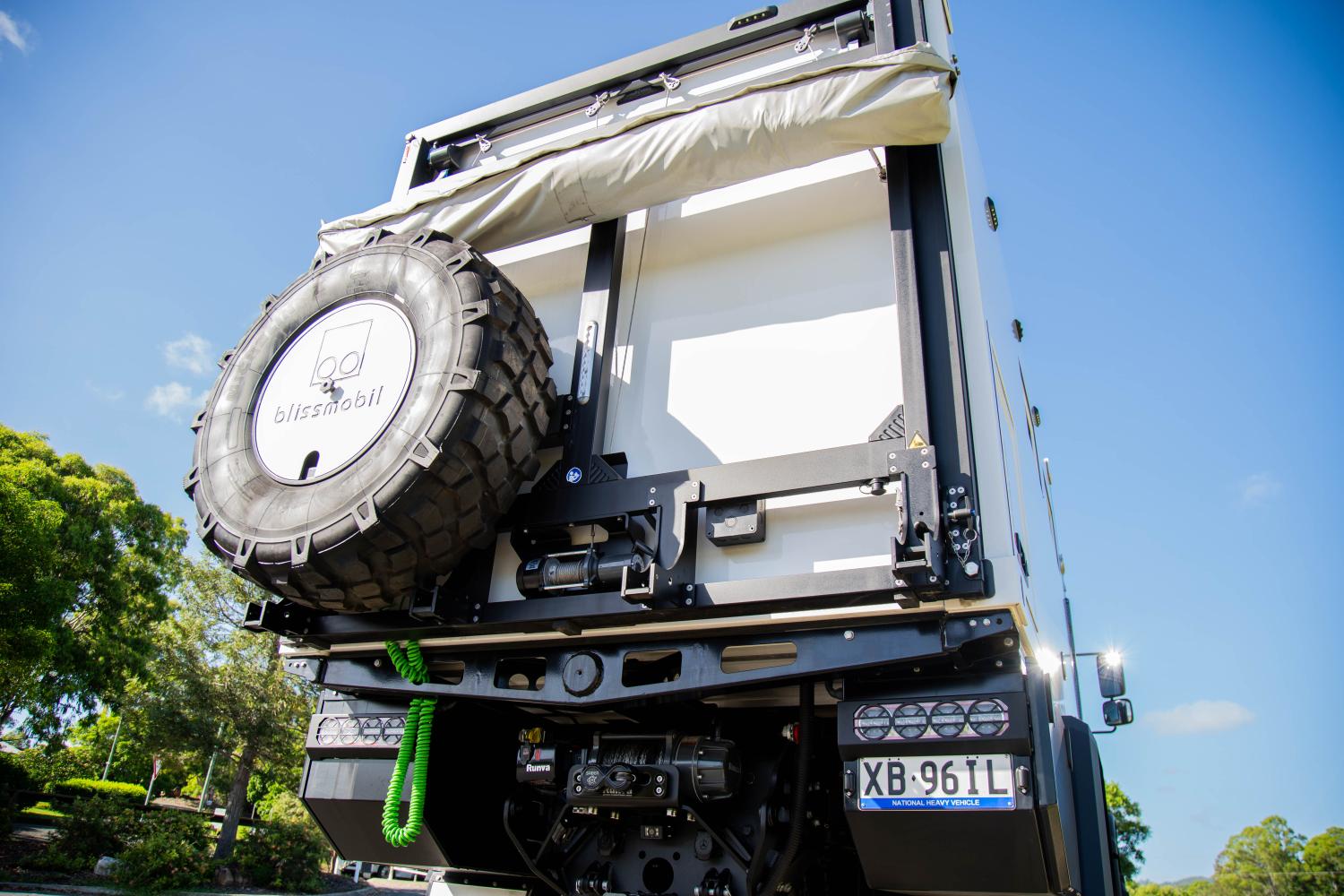

  • Rear Tyre Carrier with Hoist (and additional bike carrier)
  • Large 13 foot torsion free subframe
  • Spare parts kit
  • GPS iridium tracker mounted on roof
  • Shipping and customs etc. for delivery into Australia

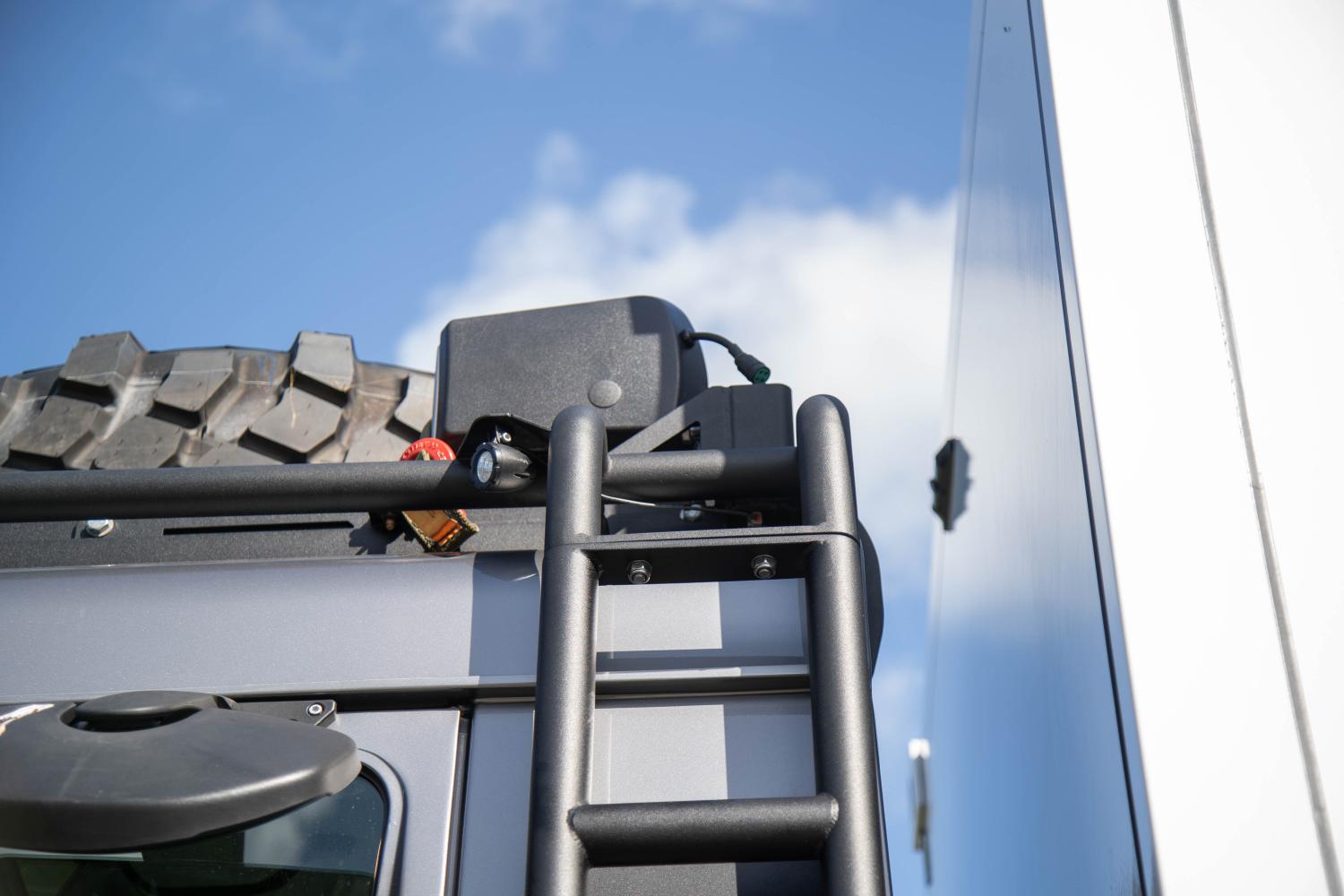

  • Entry ladder modification at Unidan for Hutchinson rim and XML tyre fitment
  • Customised mud guards for Unimog

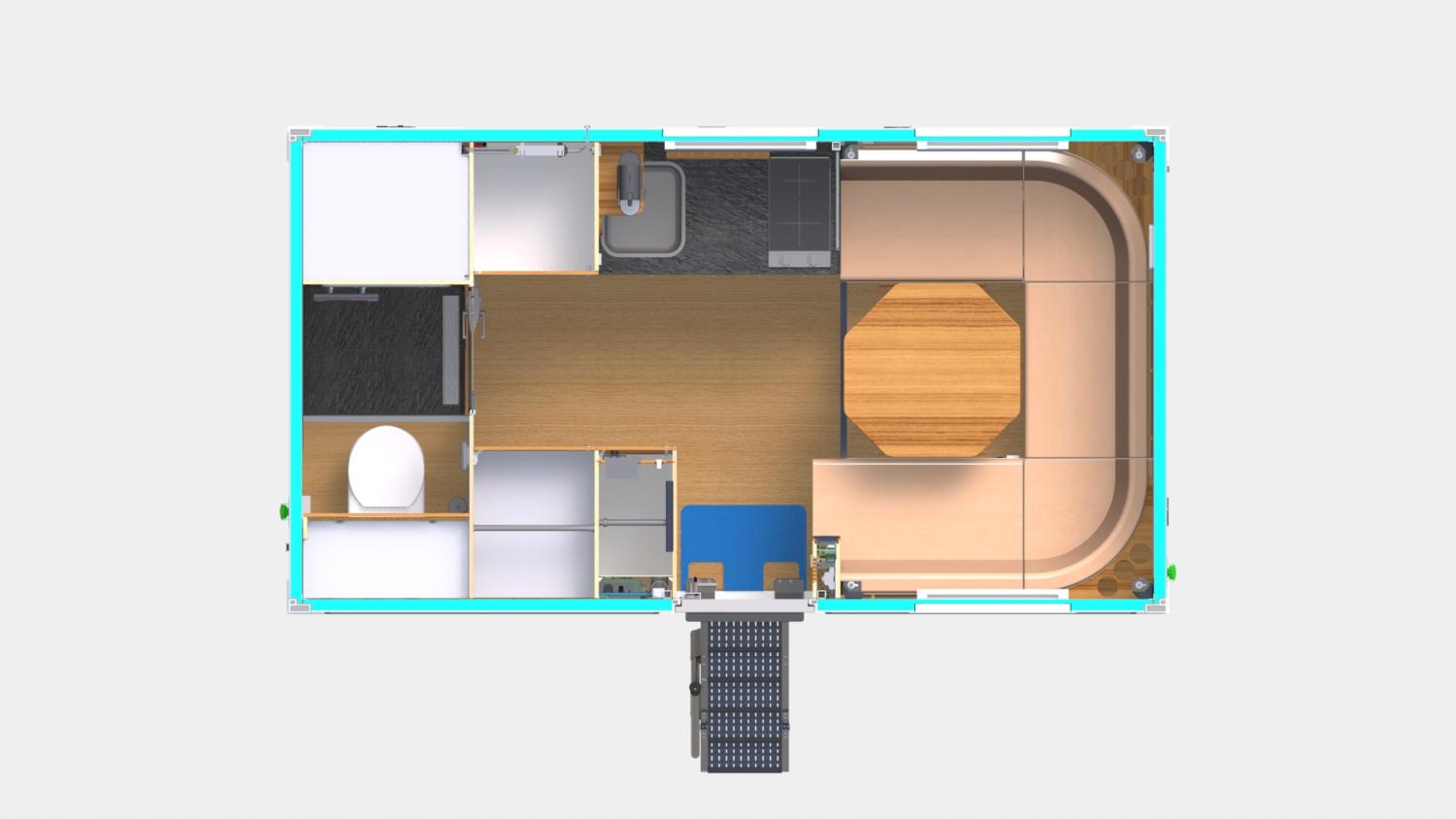

TYPE 4 LAYOUT
